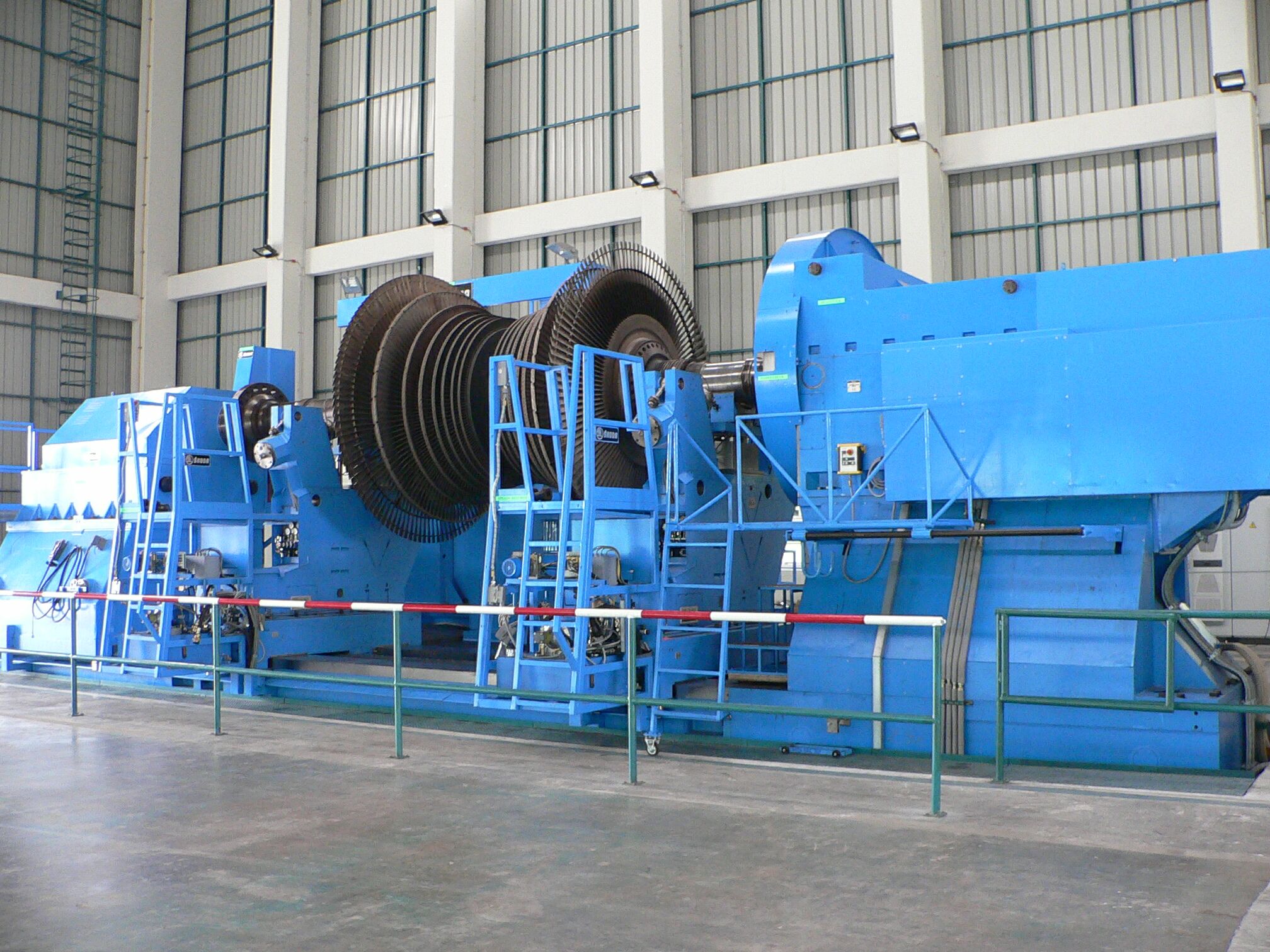

The SMT SR 1-5 series of Horizontal Turning machines utilize 100% Hydrostatic way systems for superior heavy-duty cutting of very heavy parts over the full volume of the work cube.

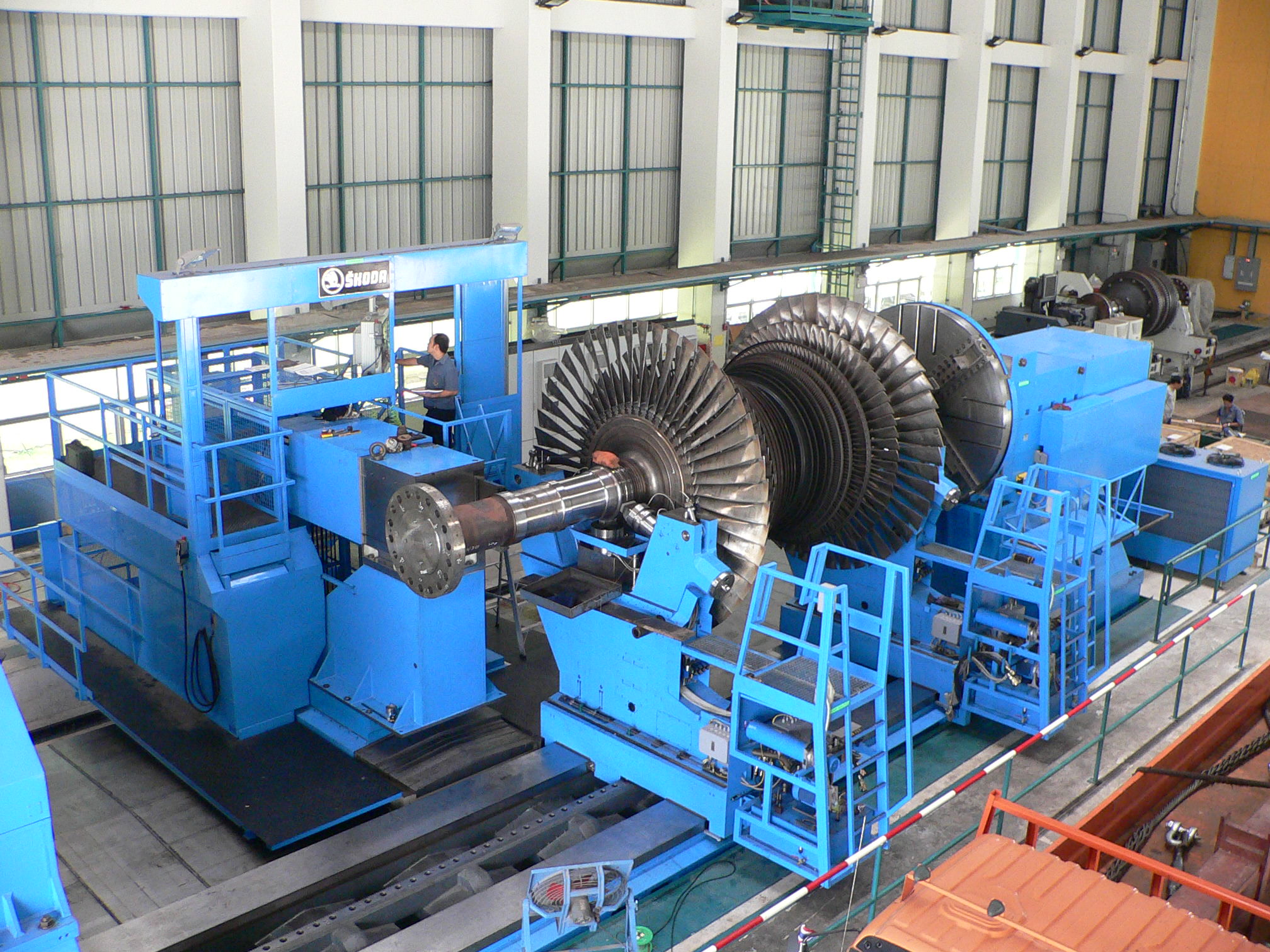

The SMT SR 1-5 Turning Lathe can be designed with a variety of lengths, swing diameters and steady rests to solve the most demanding large and long part production turning environment.

General Specifications

Working Range Axis Systems Hydrostatic
Swing Over Carrage 40 to 236" (1,000 to 6,000 mm)
Swing over Bed 49 to 205" (1,250 to 5,200 mm)
Carrage and Bed Width of Bed Guideways 61 to 202" (1,550 to 5,140 mm)
Table Power 4
X axis Travel (Carrage Cross Travel) 31 to 98" (800 to 2,500 mm)
Turning Spindle Power Speed 120 to 700 RPM
Power 74 HP (55 kW) - 475 HP (355 kW)

Available Options

  • Power Chucks
  • Hydrostatic Steady Rests
  • Grinding Heads
  • Coolant Systems
  • Tool Probe
  • Part Probe
