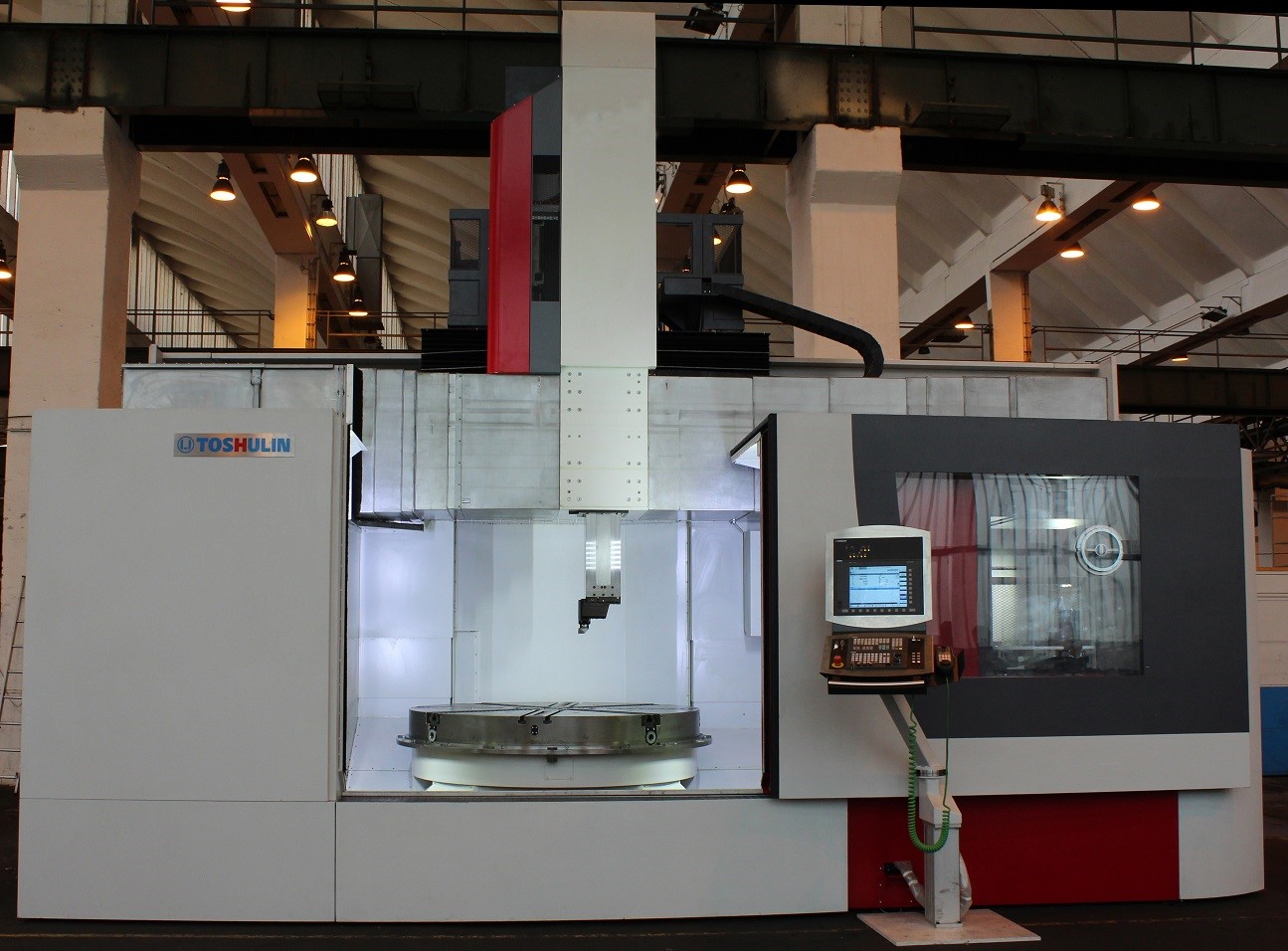

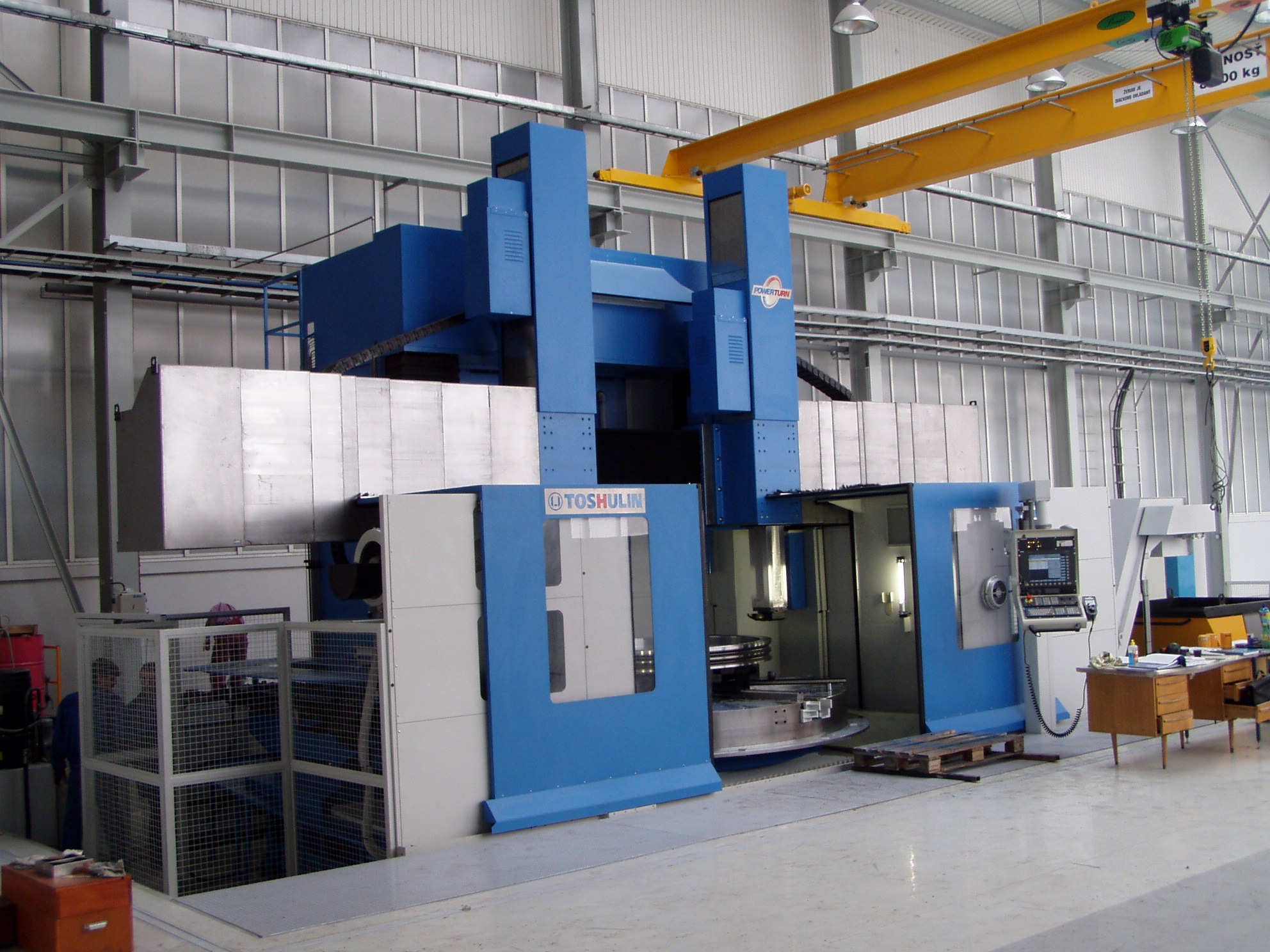

The POWERTURN vertical turning and boring lathe is designed for use in general machining and production environments. The POWERTUN is the most flexible VTL TOSHULIN builds.  Flexibility with tooling, flexibility with HP and flexibility in providing complete machining solutions.

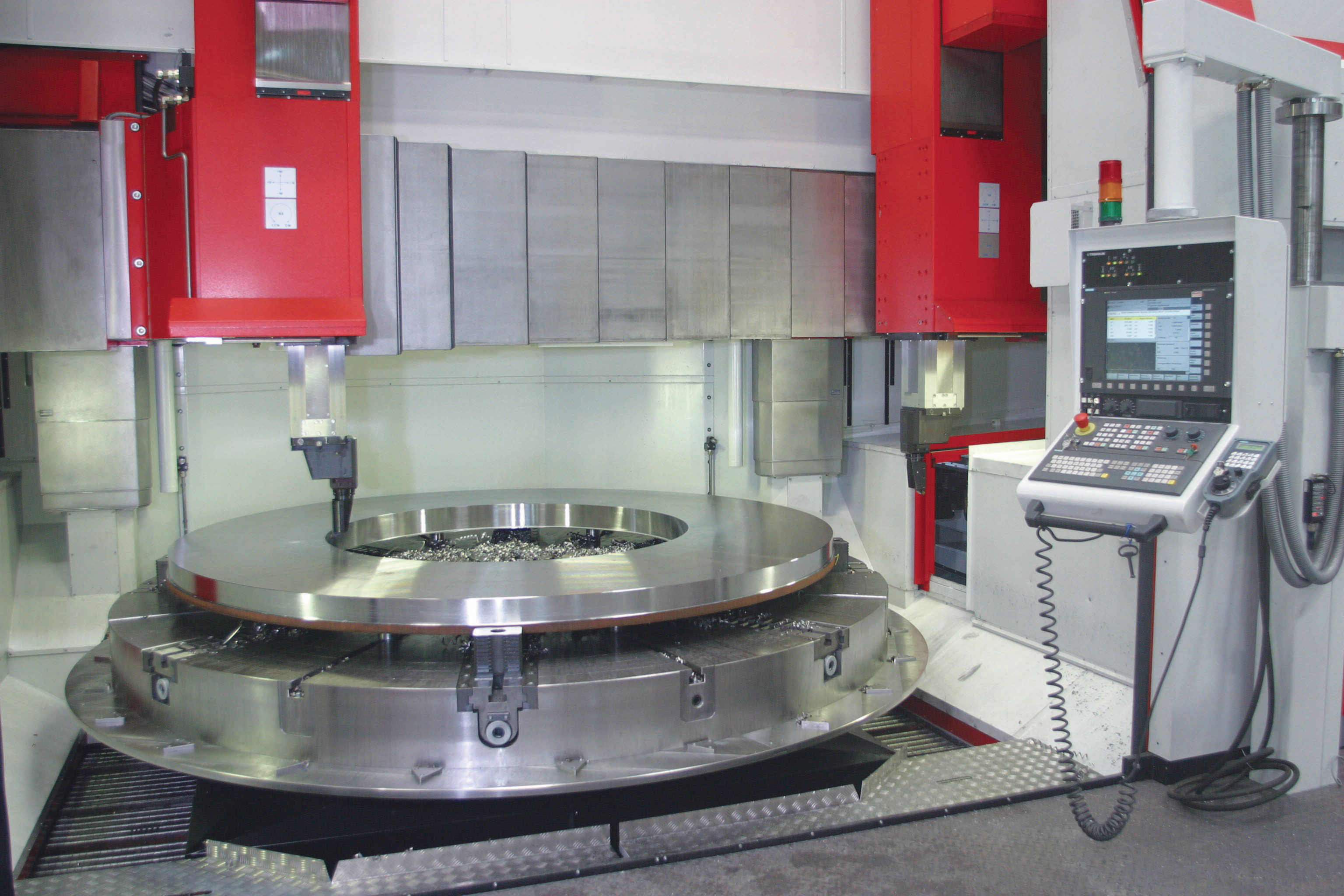

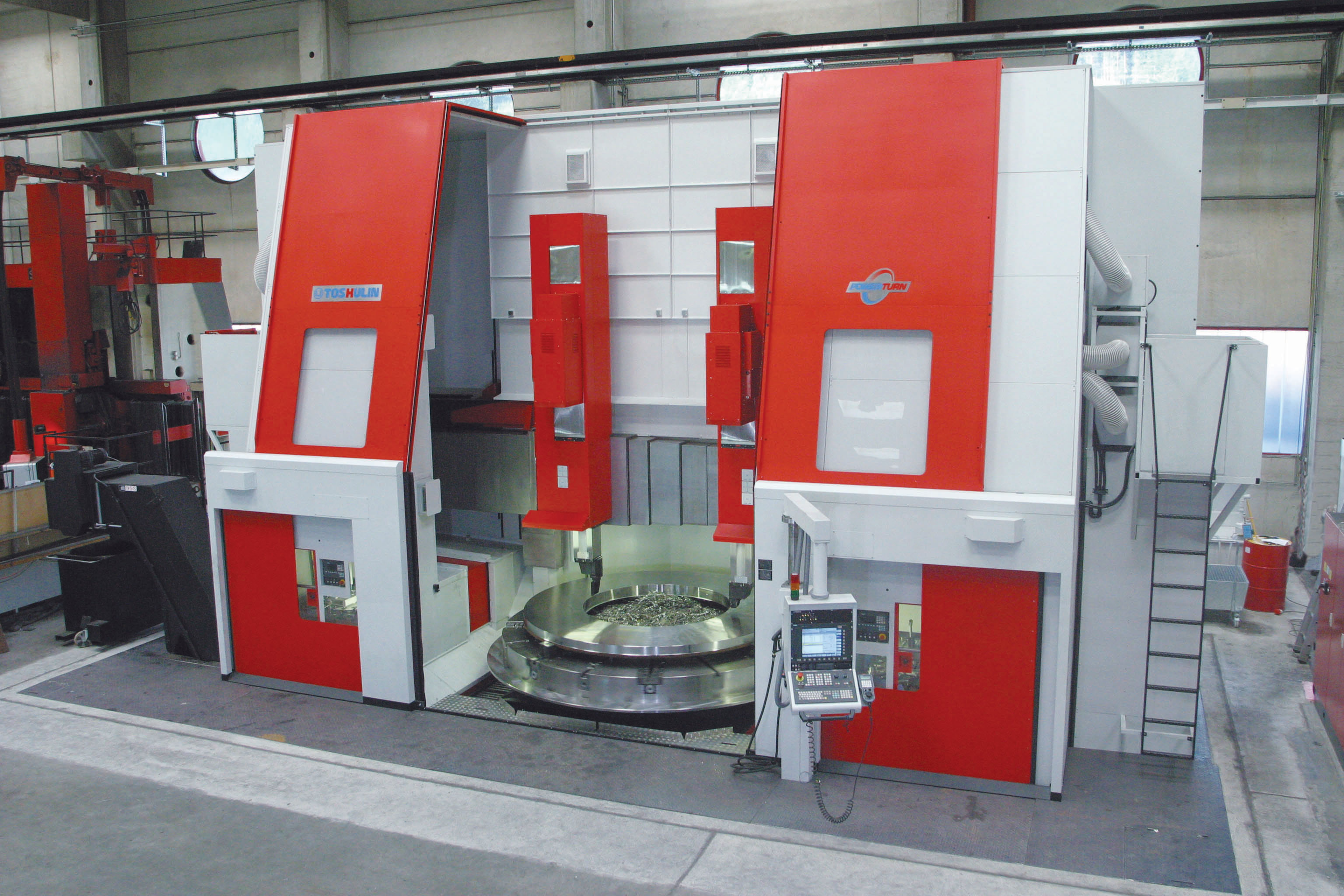

The POWERTURN turning table incorporates an angular contact roller bearing for heavy weight carrying capacity and high table speed capabilities. The use of box ways and its double column symmetrical head and ram design place it best in class for rough and finish turning requirements.

The POWERTURN uses an advanced tool exchange method which allows the user a broad choice in the number of tools used (from 45 to 156 tools). This machine can be equipped with a variety of tool types from holders for conventional tools (1.5" x 1.5"), to the automatic exchange of cutting heads, which could include 50 taper, HSK, Kennametal KM or Sandvik CAPTO. This machine can also be equipped with a live milling and drilling spindle with the same tooling options to further broaden its capabilities.

General Specifications

Working Range Table Size 32” to 197” (800- 5,000 mm)
  Maximum Workpiece Diameter 39” to 228” (1,000 - 5,800 mm)
  Maximum Workpiece Height 51” to 121” (1,300 -37080 mm)

Table Table Speed 630 - 125 RPM
  Table Power 80-140 HP (60- 105 kW)
  Table Weight Capacity 17,600 - 66,000 lbs. (8,000 -30,000 kg)

Ram (Rail Head) Ram Size 9” x 9” (240 x 240 mm)
  Ram Travel 50” or 59” (1,280 or 1,500 mm)

Live Milling Spindle Spindle Speed 3000, 4500 or 8000 RPM
  Spindle Power 50 HP (37 kW)
  C-Axis Speed 7.2-2.5 RPM

Automatic Tool Changer Capacity 45 - 96 tools


Available Options

  • Live Spindle with Table C axis
  • Y axis Head
  • B axis Head
  • C axis Head
  • Coolant Systems
  • Tool Probe – with and without laser measuring
  • Part Probe
