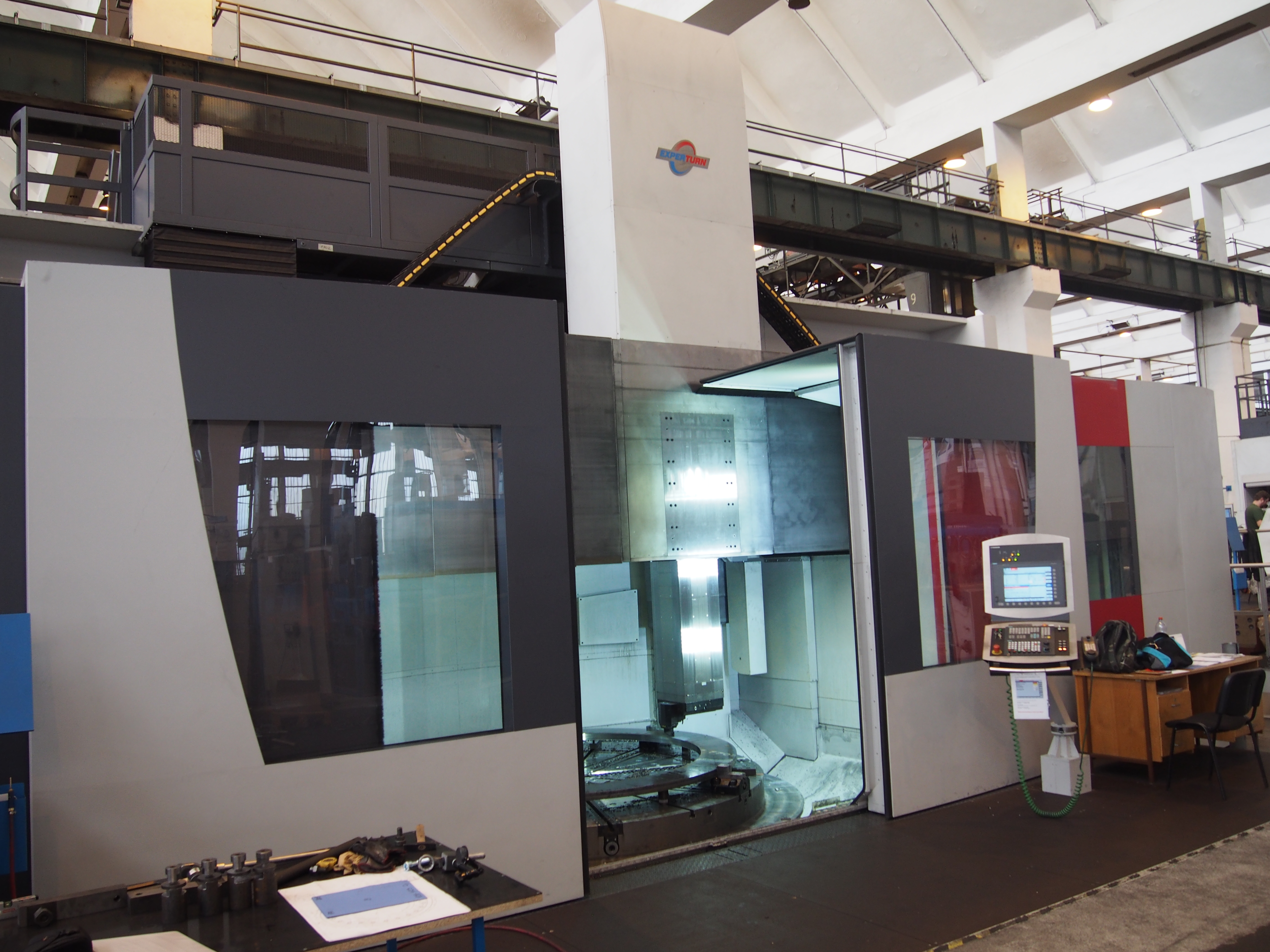

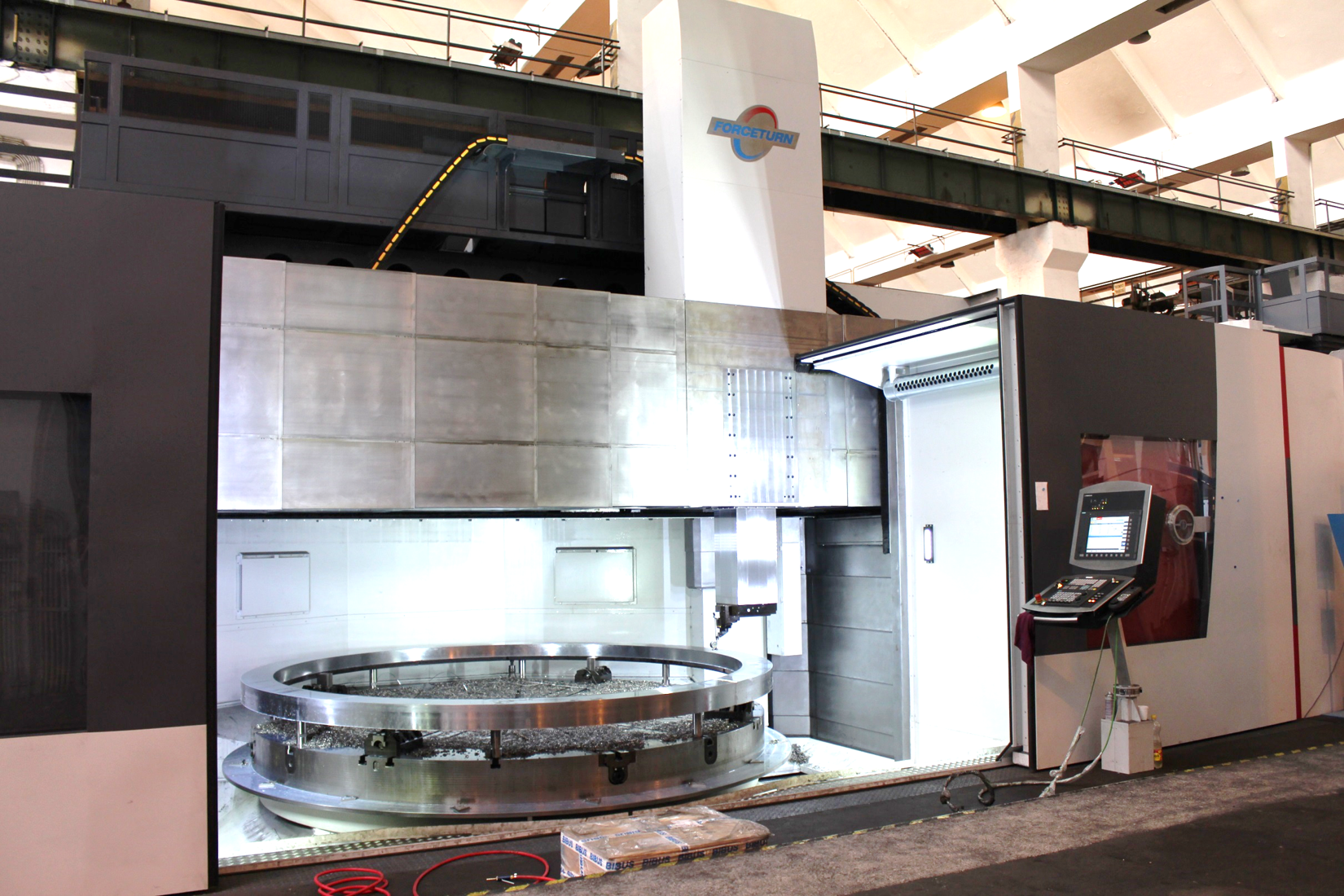

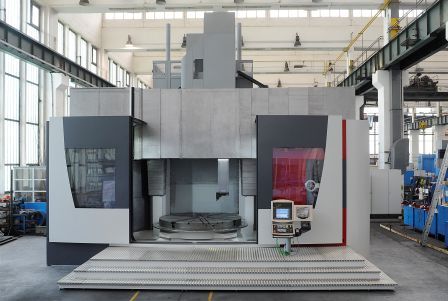

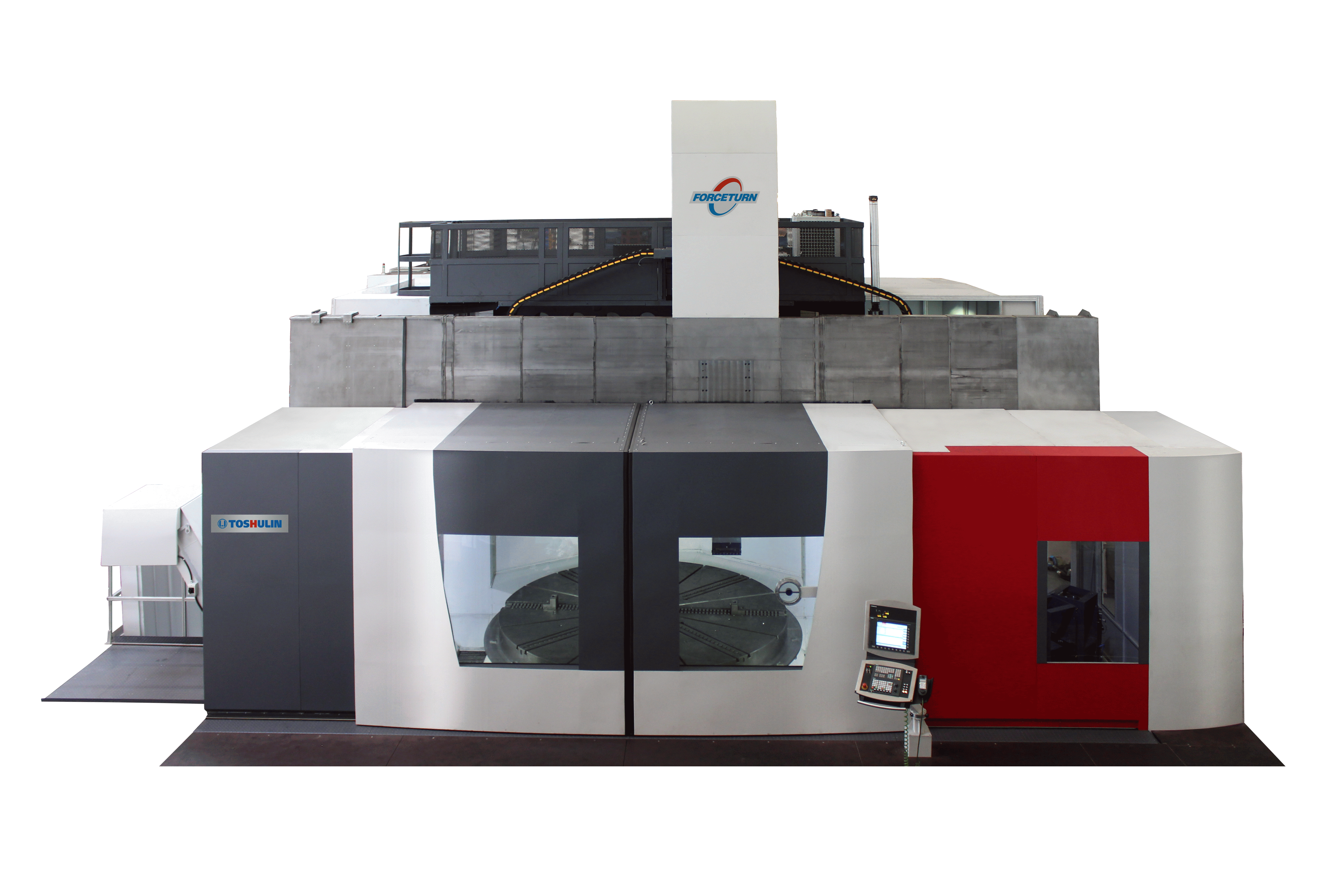

The FORCETURN vertical turning and boring lathe is designed for use in very large machining and flexible production. The FORCETURN is the largest, super heavy duty performance VTL TOSHULIN builds.

The FORCETURN turning table incorporates a hydrostatic bearing for very heavy work piece weight carrying up to 220,000 lbs. (100,000 kg). Along with the use of very large hydrostatic box ways and its double column, symmetrical head and large cross section ram design keeps it best in class for very large and heavy turning requirements.



The FORCETURN can also be equipped with a live milling and drilling spindle to further broaden its capabilities and if you add the “C plus C = Y” axis head it is the closest to one and done machine for large part turning and milling available.

General Specifications

Working Range Table Size 98" to 236" (2,500 - 6,000 mm)
  Maximum Workpiece Diameter 114" to 287" (2,900 - 7,300 mm)
  Maximum Workpiece Height 72" to 197" (1,840 - 5,000 mm)

Table Table Speed 250 - 100 RPM
  Table Power 160 - 268 HP (120 - 200 kW)
  Table Weight Capacity 66,000 - 220,000 lbs. (30,000 - 100,000 kg)

Ram (Rail Head) Ram Size 12.5" x 12.5" (320 x 320 mm)
  Ram Size - Option 15.7" x 15.7"(400 X 400 mm)
  Ram Travel 79" to 98" (2,000 - 2,500 mm)

Live Milling Spindle Spindle Speed 3000 RPM
  Spindle Power 68 HP (51 kW)
  C - Axis Speed 12.5 - 6.5 RPM

Automatic Tool Changer Capacity 40 - 124 tools


Available Options

  • Live Spindle with Table C axis
  • C axis Head
  • B axis Head
  • Coolant Systems
  • Tool Probe – with and without laser measuring
  • Part Probe
