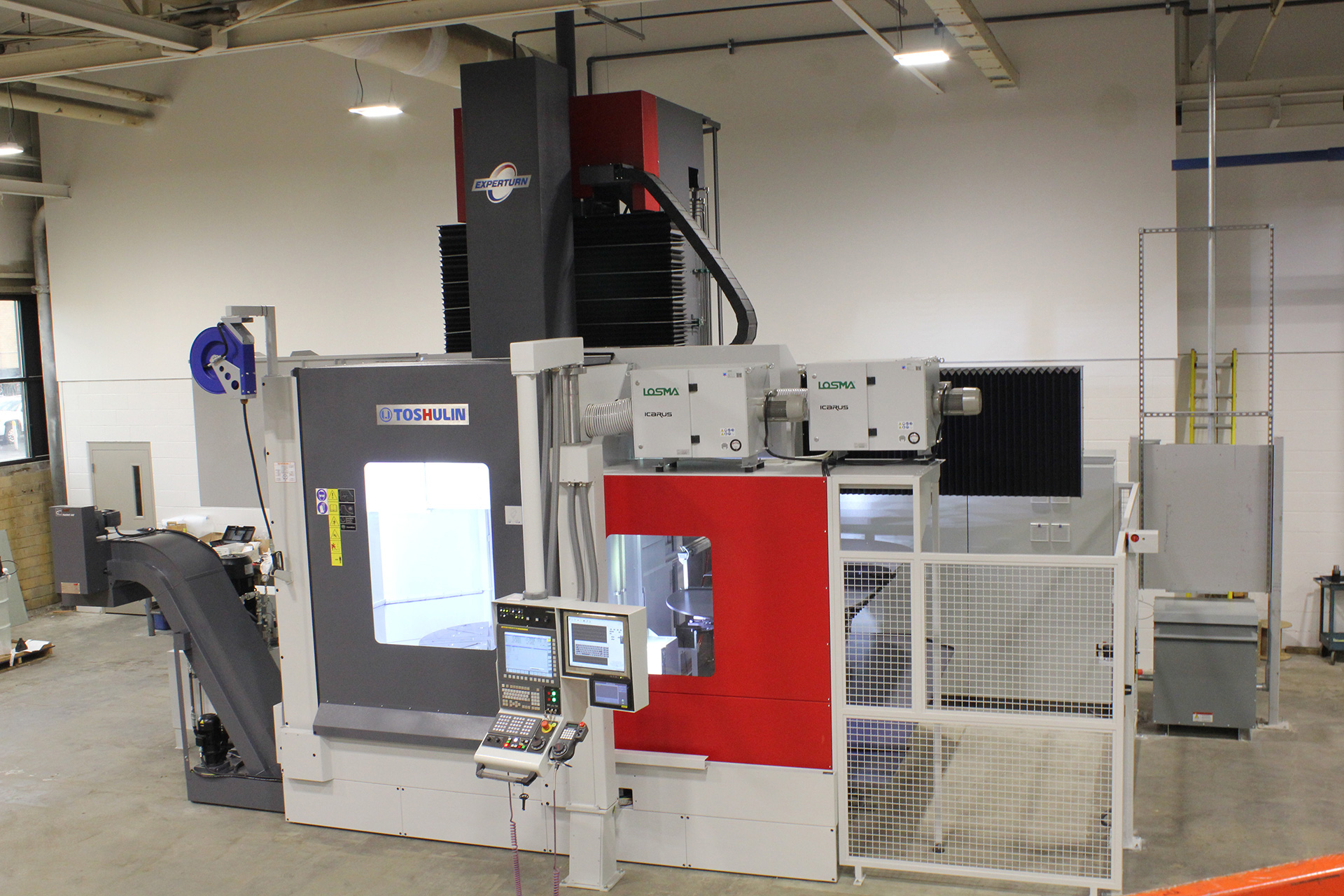

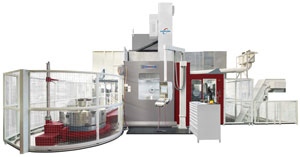

The EXPERTURN vertical turning and boring lathe takes the POWERTURN and FORCETURN to the next level of productivity with the addition of:

  • Full Y axis table movement
  • Up to 5146 PSI (350 bar) coolant systems
  • 5 axis milling and drill heads
  • Custom engineered solutions

General Specifications

Working Range Table Size 32" to 236" (800 - 6,000 mm)
  Maximum Workpiece Diameter 39" to 287" (1,000 - 7,300 mm)
  Maximum Workpiece Height 51" to 197" (1,300 - 5,000 mm)

Table Table Speed 630 - 100 RPM
  Table Power 80-268 HP (60 - 200 kW)
  Table Weight Capacity 17,600 - 220,000 lbs. (8,000 - 100,000 kg)

Ram (Rail Head) Ram Size 9" x 9" (240 x 240 mm)
    12.5" x 12.5" ( 320 x 320 mm)
    15.7" x 15.7" (400 X 400 mm)
  Ram Travel 50" or 98" (1,280 or 2,500 mm)

Live Milling Spindle Spindle Speed 3000, 4500 or 8000 RPM
  Spindle Power 50 HP or 68 HP (37 kW or 51 kW)
  C - Axis Speed 7.2 - 6.5 RPM

Automatic Tool Changer Capacity 40 - 124 tools


Available Options

  • Live Spindle with Table C axis
  • C axis Head
  • Y axis heads
  • B axis Head
  • Coolant Systems
  • Tool Probe – with and without laser measuring
  • Part Probe
  • Automatic Pallet Changer
  • Y axis Table
