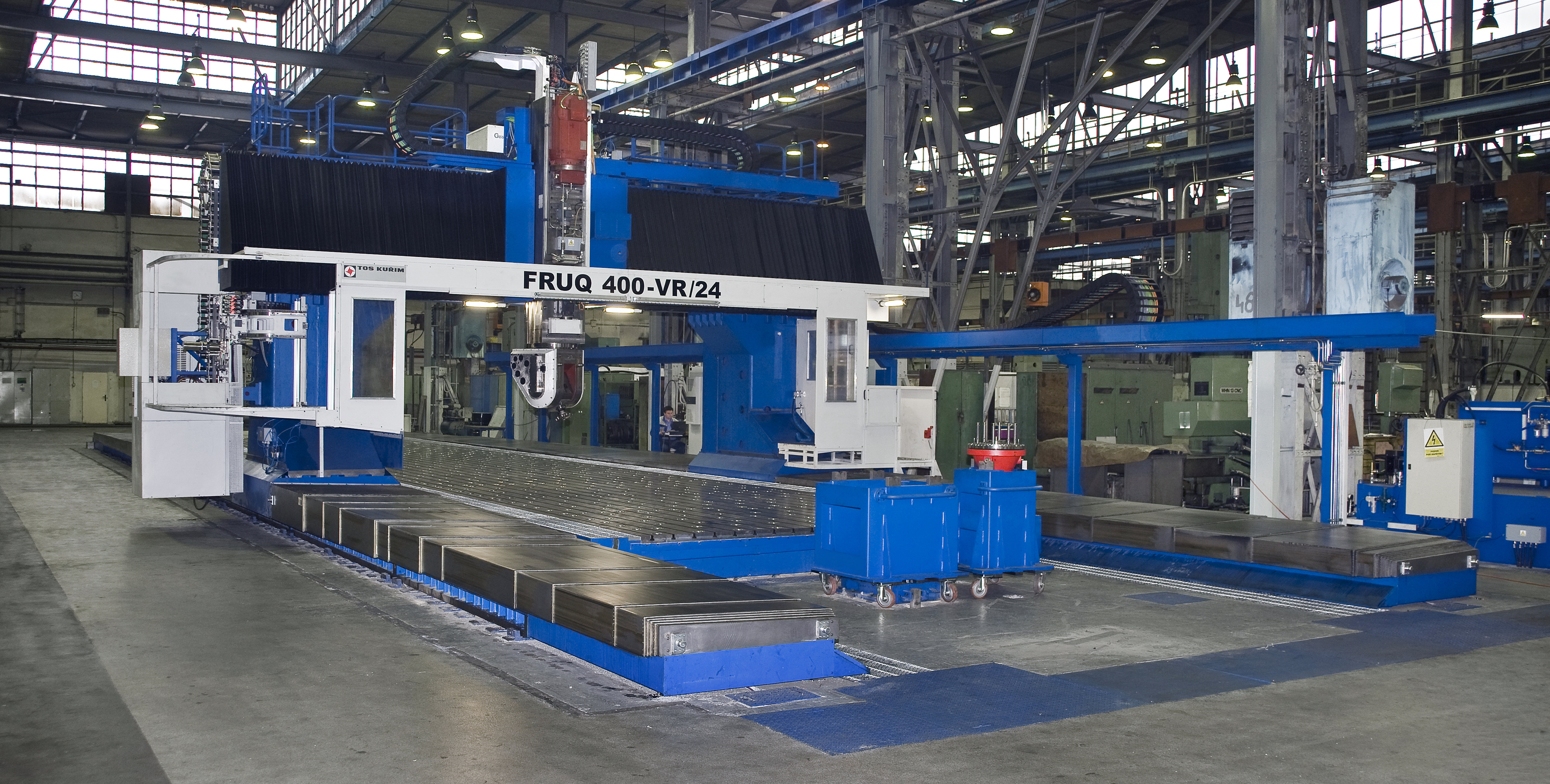

AUTOMATIC TOOL CHANGER for TOS KURIM Vertical CNC Gantry Machines

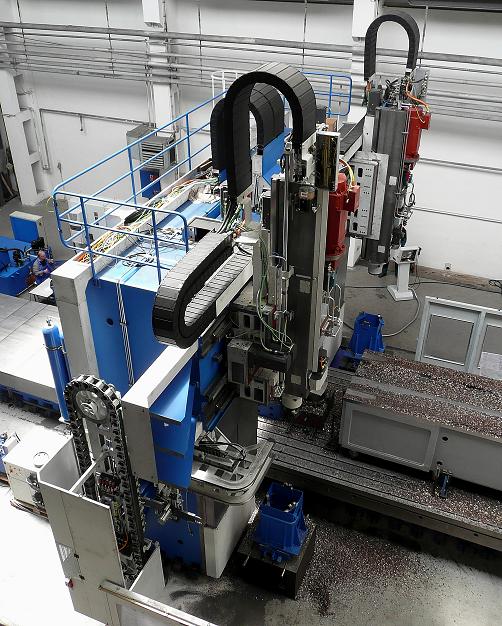

The TOS KURIM automatic tool changer can store up to 120 tools while riding along with the traveling gantry. Riding with the gantry reduces tool change time by not having to go to the end of the X axis to pick up a tool. On the FRP Portal table type machines the tool changer and magazine are floor mounted and stationary.

The TOS KURIM automatic tool changer can change tools into the ram and bar spindle and various heads in both the horizontal or vertical attitude.

General Specifications

Chain Style Magazine Tool Capacity 40 to 140 Tools

On Floor or On Gantry Bed Tool Weight Capacity 66 lbs. or 110 lbs. (30 kg or 50 kg)
  Tool Change Position Horizontal or Vertical

Matrix Style Magazine Tool Capacity 80 to 220 Tools

On Floor or On Gantry Bed Tool Weight Capacity 66 lbs. or 110 lbs. (30 kg or 50 kg)
  Tool Change Position Horizontal or Vertical



Tool Storage with 100 Tools
Tool Storage with 100 Tools
previous arrow
next arrow
Full screenExit full screen
ArrowArrow
Slider

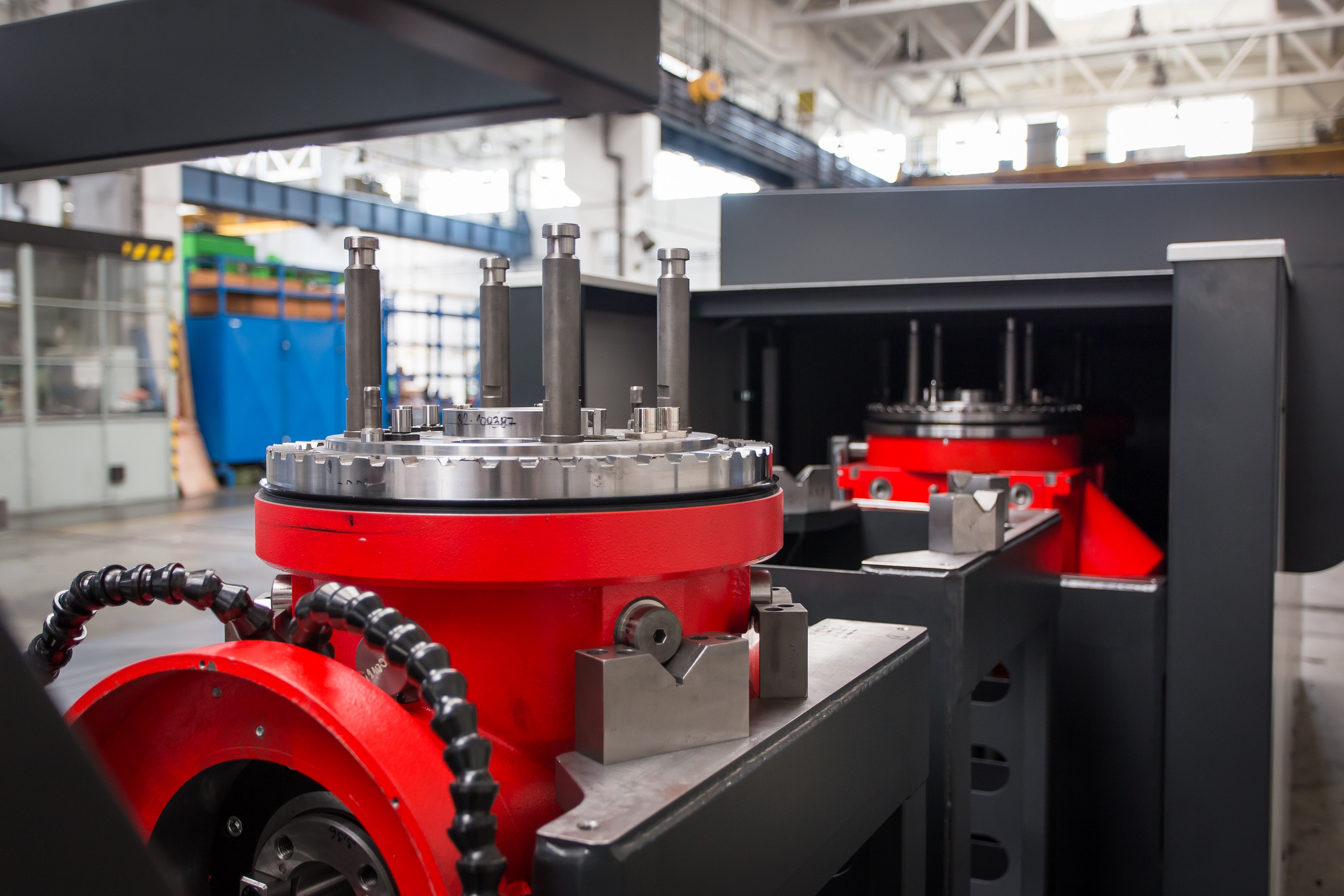

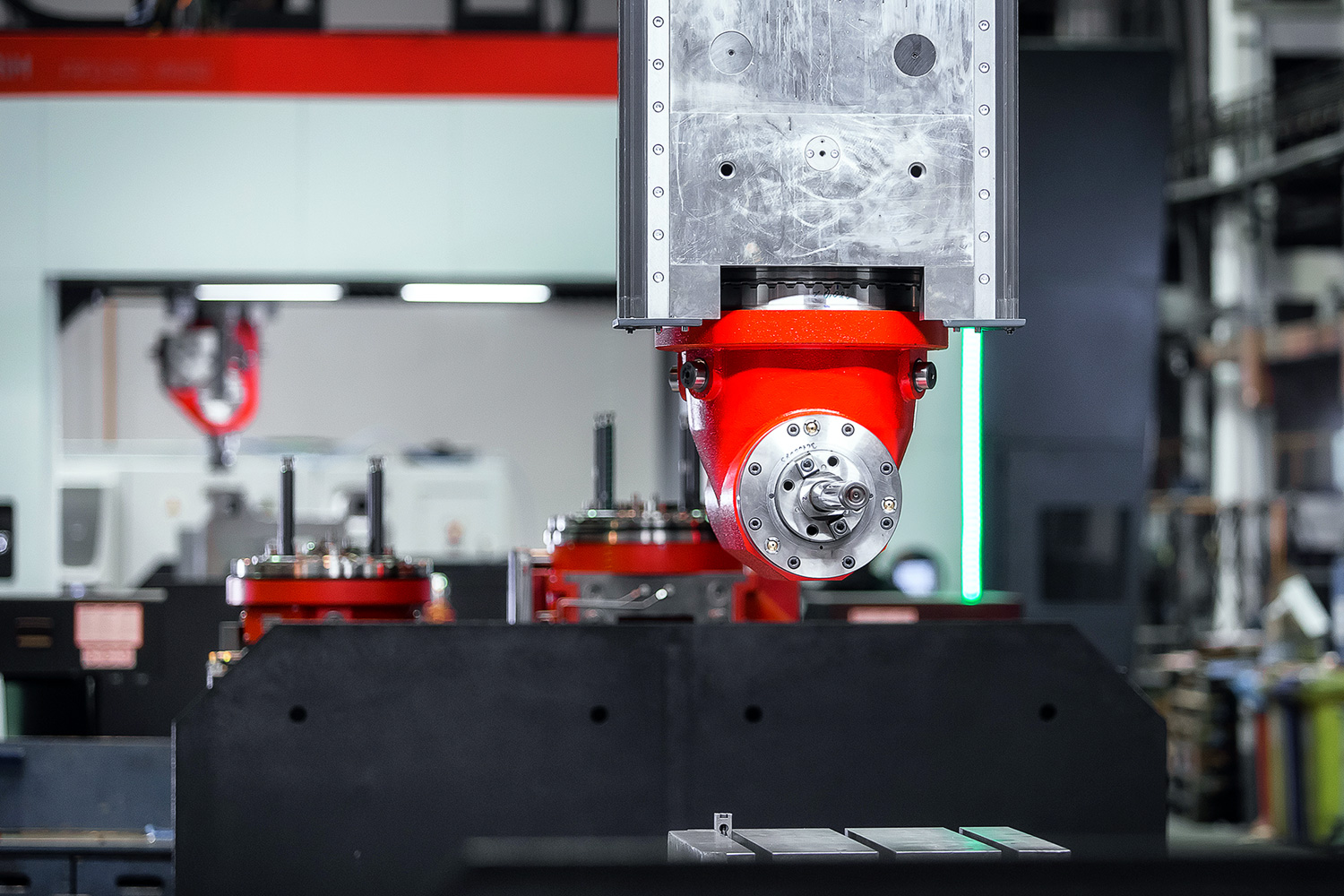

HEAD STORAGE for TOS KURIM Vertical CNC Gantry Machines

The TOS KURIM automatic Head Storage Units are built in the TOS KURIM factory to provide a direct interface and protection for head storage on all TOS KURIM Vertical Gantry and Portal machines.

The Head Storage Units can store up to 6 heads dependent upon the Y axis travel of the machine. The Head Storage Units can be placed on the floor plate or on the floor and within the X axis stroke of the machine.

Automatic drop off and pick up is incorporated into the machine CNC operation. Doors and / or steel roller shades are provided to protect the parked heads from machine chips and coolant during automatic process.

General Specifications

HEAD LOAD/UNLOAD STATION Head Capacity 2 to 6 Heads Each

Fixed Location At the End of X axis Floor Plates
  Head Protection Roll up or Sliding Doors

HEAD LOAD/UNLOAD STATION Head Capacity 2 to 4 Heads Each

Or Travel with Gantry Location In Line with Y axis Right Side of Gantry
  Head Protection Roll up or Sliding Doors





1 Degree Head
1 Degree Head
previous arrow
next arrow
Full screenExit full screen
ArrowArrow
Slider

HEADS for TOS KURIM Vertical CNC Gantry Machines

The TOS KURIM automatic attachment heads are manufactured in the TOS KURIM factory and engineered to strict tolerances.

Each TOS KURIM head is hand scraped and matched perfectly to the face of the RAM of the machine it will be married to.

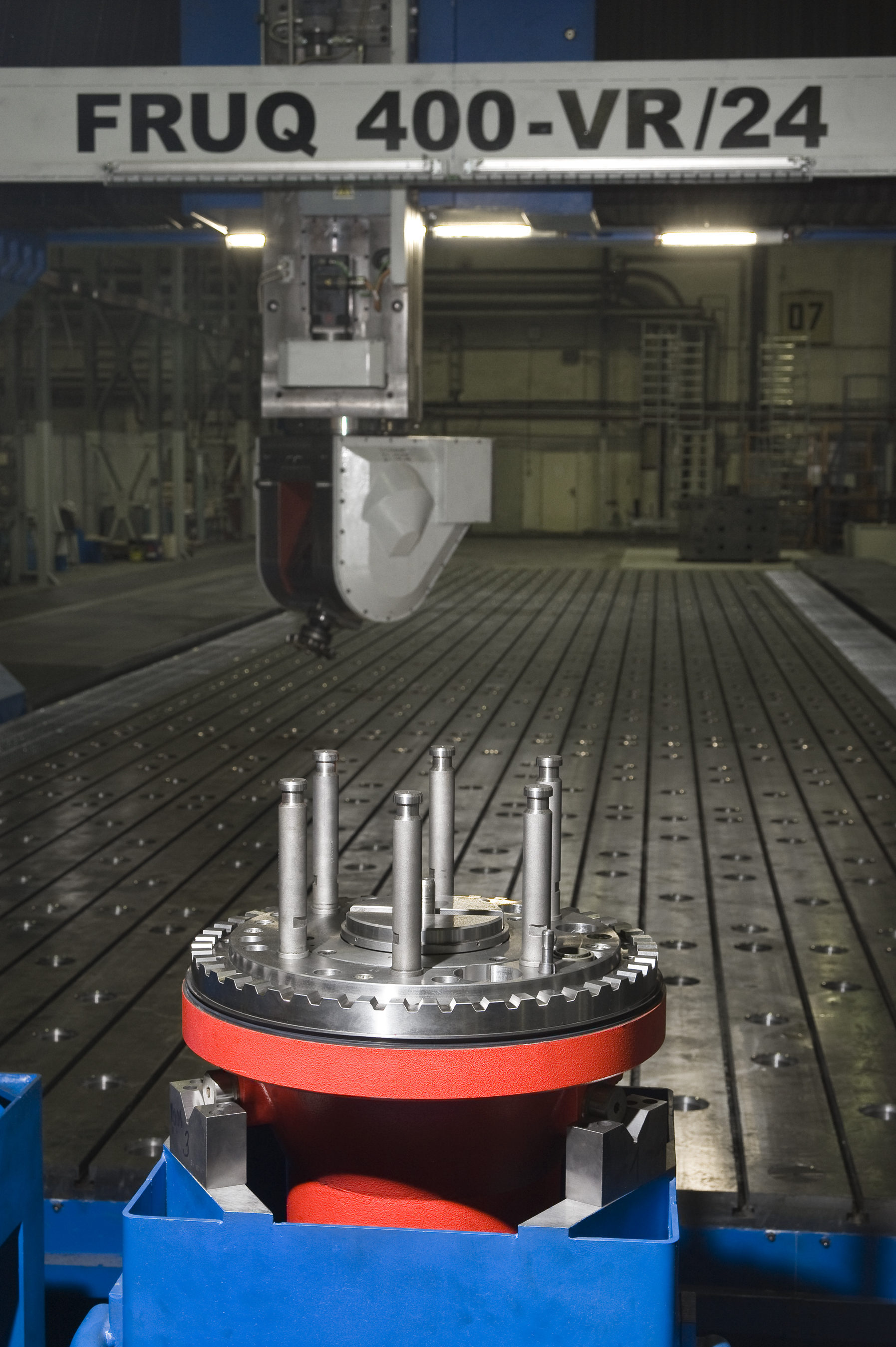

Automatic latching to the face of the RAM to provide a rigid machining platform is standard. All services including coolant, recirculating oil, electrical and air through the RAM to the head.

The automatic tool changer can change the tooling connection (CAT, HSK, and CAPTO) directly into each head in both the vertical and horizontal attitude.

General Specifications

TSQ 100L (1.0) or (2.5) Type Horizontal Facing Extended with Auto Tool Change
  Spindle Speed 2,000 to 6,000 RPM
  Spindle Power 40 HP
  Rotation - C 1.0 or 2.5 degree Hirth Coupling

TSQ 300 (1.0) or (2.5) Type Horizontal Facing Short with Auto Tool Change
  Spindle Speed 2,000 to 6,000 RPM
  Spindle Power 55 HP
  Rotation - C 1.0 or 2.5 degree Hirth Coupling

MAPA 200 Type Vertical Extended with Auto Tool Change
  Spindle Speed 2,000 to 3,000 RPM
  Spindle Power 26 HP

TABR 80 Type Automatic Universal Head with Auto Tool Change
  Spindle Speed 2,000 to 3,000 RPM
  Spindle Power 27 HP
  Rotation - C 1.0 degree Hirth Coupling
  Rotation - A +105 to -105 degree servo

TA 120 (1.0) (2.5) Type Automatic Milling Head with Auto Tool Change
  Spindle Speed 2,000 to 3,000 RPM
  Spindle Power 55 HP
  Rotation - C 1.0 or 2.5 degree Hirth Coupling
  Rotation - A 1.0 or 2.5 degree Hirth Coupling

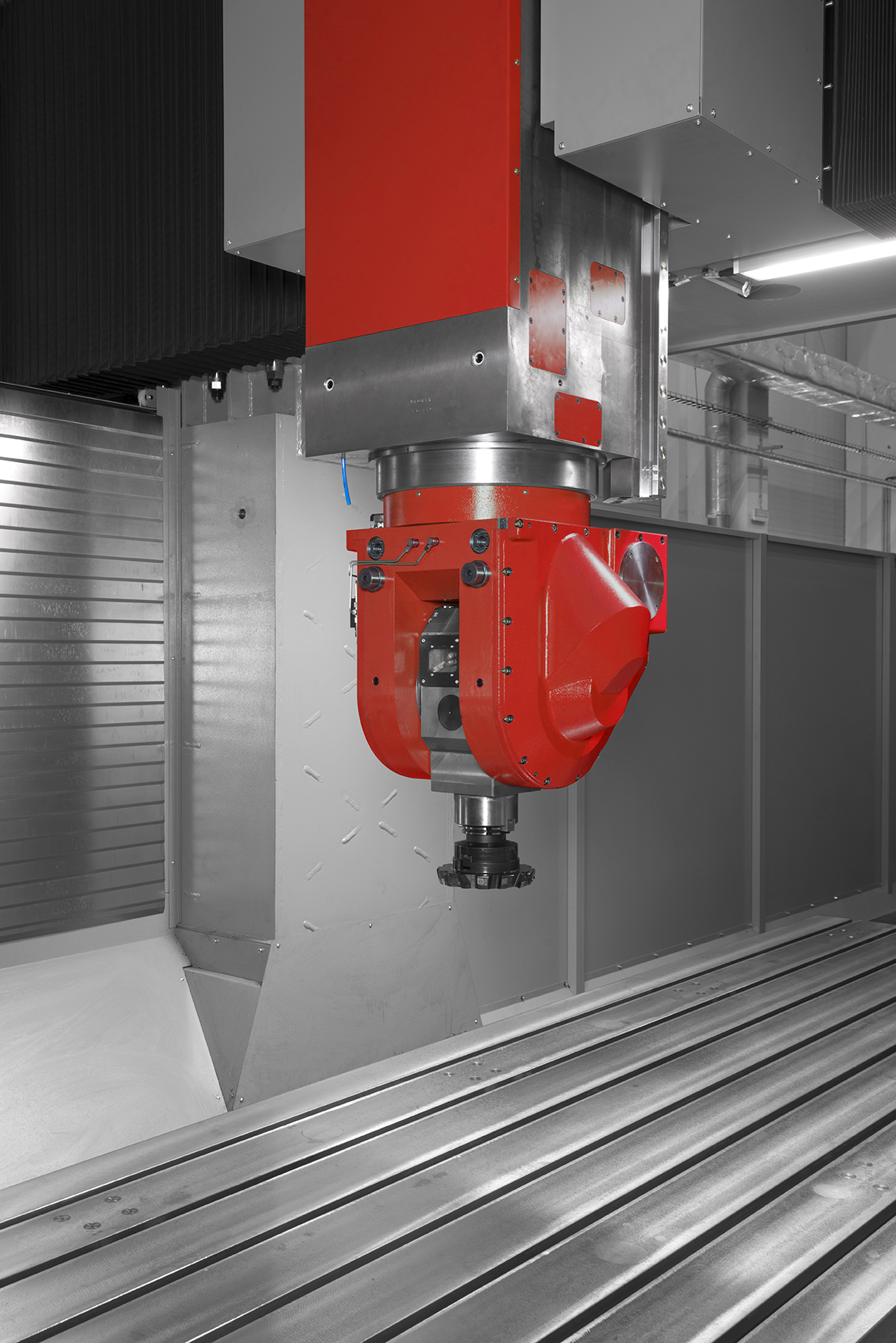

T2RA 80 5 Axis Type Full 5 Axis with Auto Tool Change
  Spindle Speed 4,500 to 8,000 RPM
  Spindle Power 40 HP
  Rotation - C 360 degree Servo
  Rotation - A +95 to -105 degree Servo



ROTARY TABLES for COLGAR
ROTARY TABLES for COLGAR
previous arrow
next arrow
Full screenExit full screen
ArrowArrow
Slider

ROTARY TABLES for TOS KURIM Vertical CNC Gantry Machines

The TOS KURIM Traveling Gantry, Bed Type Traveling Gantry and Portal Machines most commonly are supplied with floor plate or fixed or moving T slotted table, however, a TOS KURIM rotary table can also be integrated into the machine envelope.

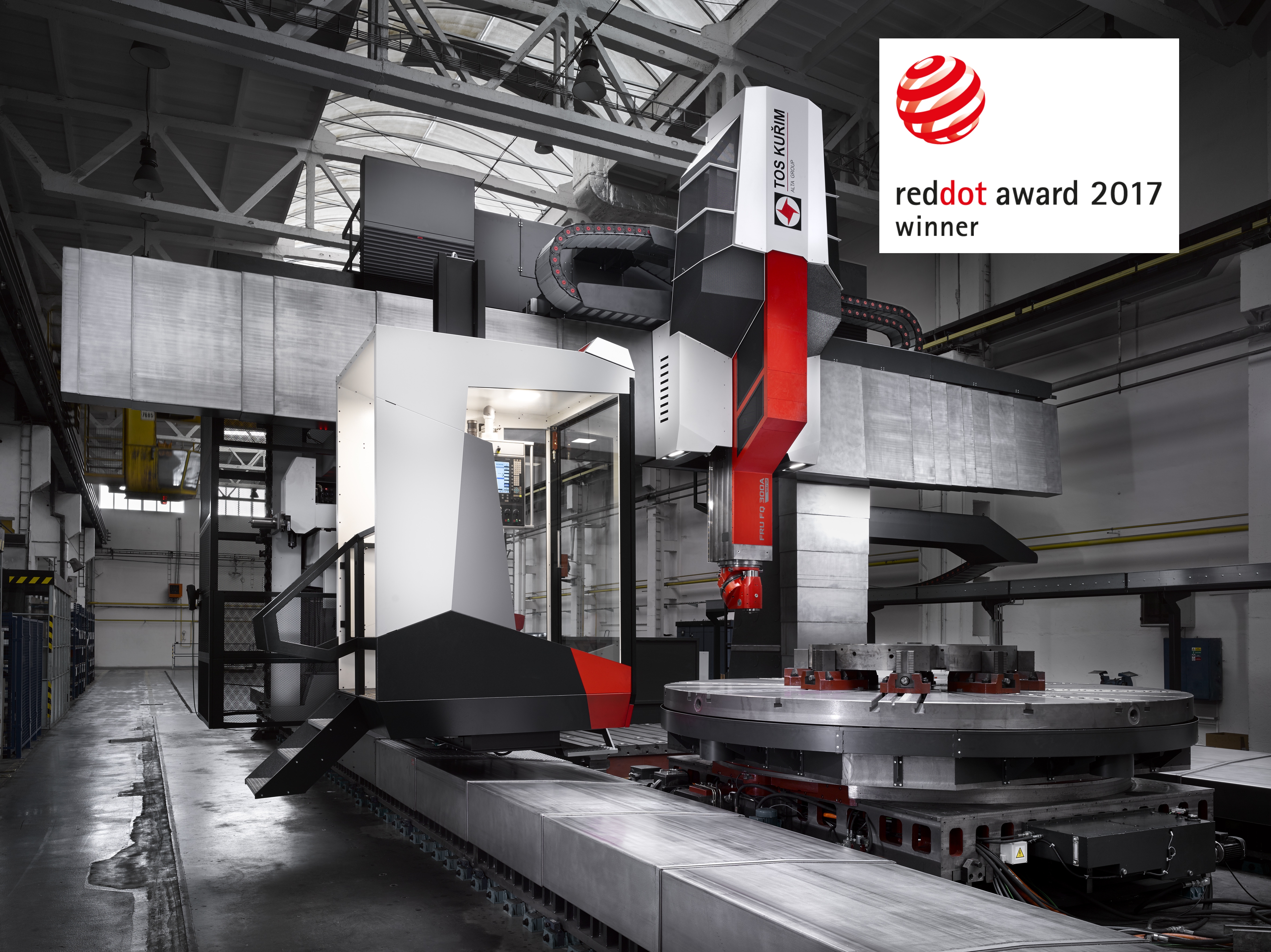

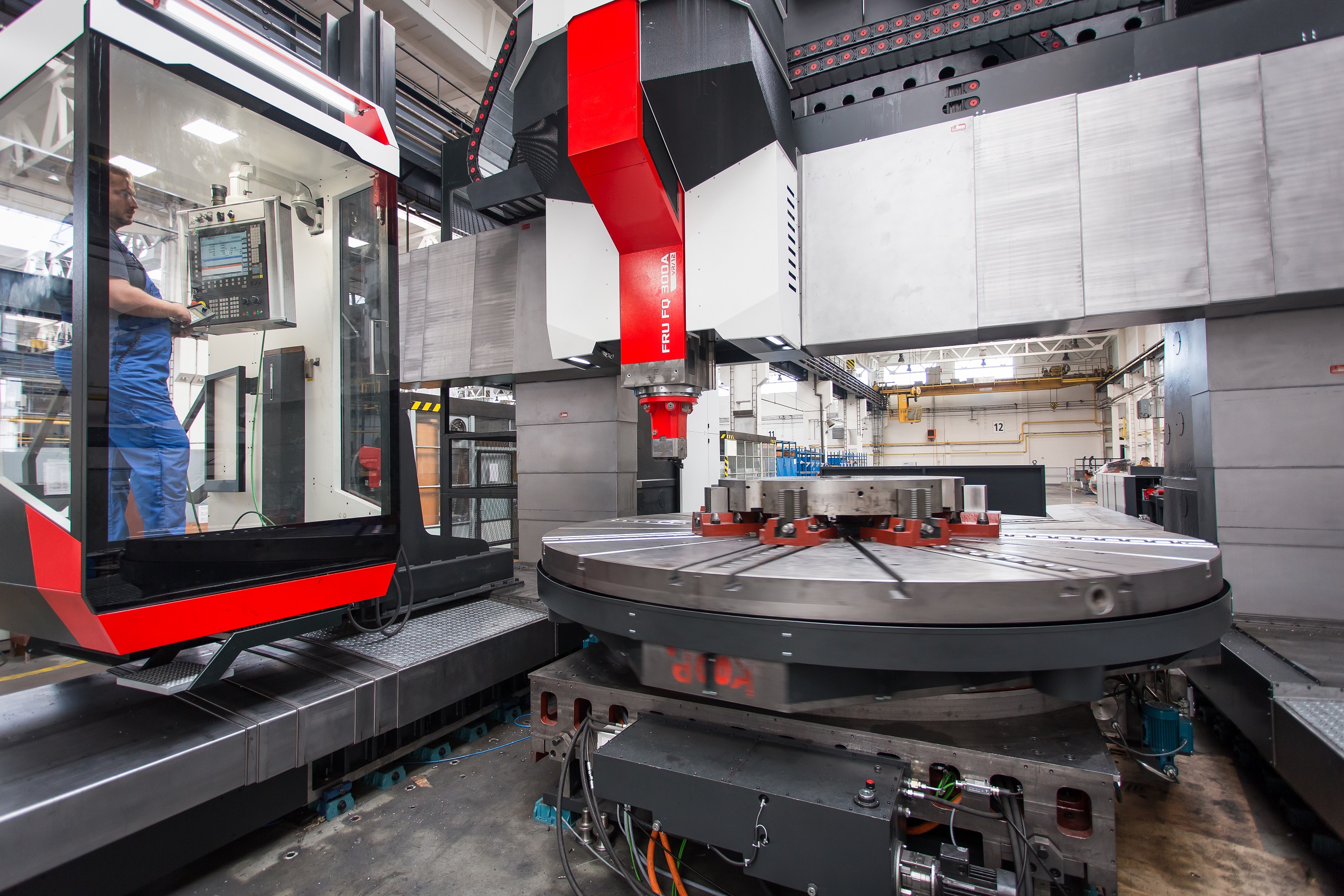

A Turning Table is also available so large parts are not required to be moved to another machine to just turn some features.

General Specifications

FLOORPLATES Load Capacity 33,000 lbs (15,000 kg) per square meter (39.4")
Design for X travel Size 39.4" to 39.4" (1,000 mm to 1,000 mm)
  Thickness 11.8" (300 mm)
  Top Configuration T Slots

L355 Turning Table Load Capacity 66,000 lbs (30,000 kg)
  Table Size - Round 118" (3,000 mm)
  Table Speed 1.6 to 220 RPM
  Table Power 241 HP (180 kW)
