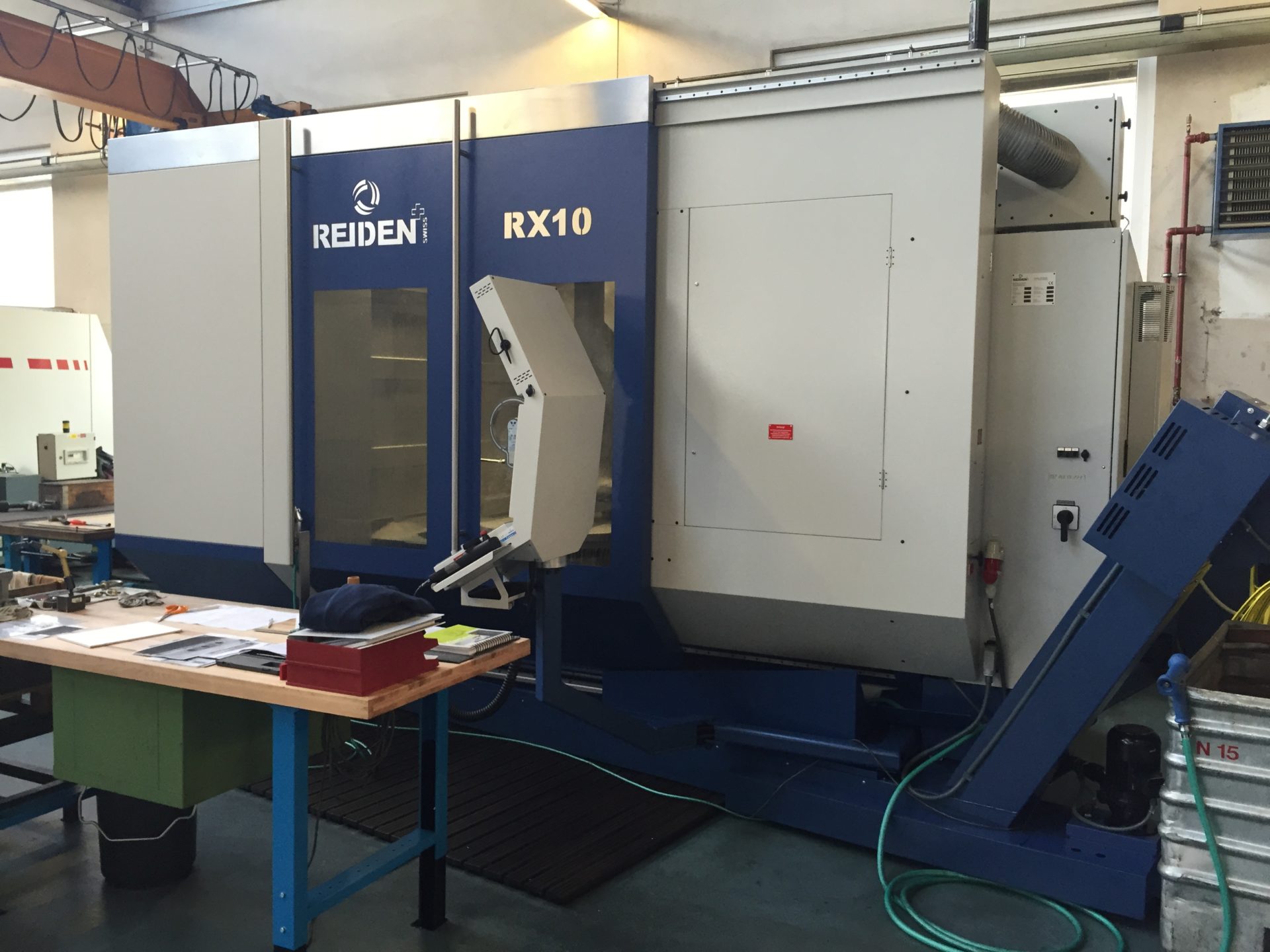

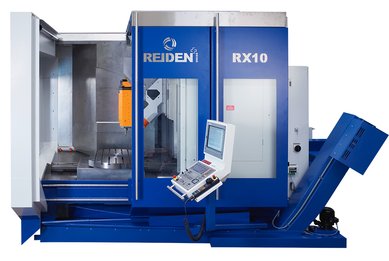

REIDEN RX10 5-Axis Machining Center

previous arrow
next arrow
Full screenExit full screen
previous arrownext arrow

The REIDEN Technik RX10 5 axis machining center provides a solution to all of your machining needs with its Milling, Turning and Pallet Changing system.

The structure of the REIDEN 5 axis RX10 is designed to minimize all moving parts which guarantees premium stability.

The mineral casting base and column insure superior machine process temperature control and vibration absorption.

The RX10 is a compact universal 5-axis machining center with a very small footprint.

The machine offers a significant machining envelope in relation to its footprint dimensions.

General Specifications

Working Range Table Size 39" x 32" (1,000 x 800 mm)
  Axis Travel X 39" (1,000 mm)
  Axis Travel Y 43" (1,100 mm)
  Axis Travel Z 32" (810 mm)
  Axis Travel A Spindle Head -1 to 90 degrees
  Axis Travel C Table 360 degree continuous
Table Table Weight Capacity 2,200 lbs. (1,000 kg)
  Table Swing 53" (1,350 mm)
  Turning Option Speed 400 RPM
  Turning Option Power 50 HP (38 kW)
Feed Rate/Rapid Rates Linear Axis 2,362 IPM (60 M/min)
  Linear Axis Acc/Dec .7 G
  C Axis Table Feed 20 RPM
Spindle Power Spindle Speed 16,000 RPM - HSK 63A
  Spindle Power 50 HP (38 kW)
  Spindle Speed - Optional 5,700 RPM - HSK 100A
  Spindle Power - Optional 39 HP (29 kW)
Automatic Tool Changer Capacity 73 - 273 tools
Automatic Pallet Changer Capacity 2 to 5 Pallet APC

Available Options:

  • High Torque or High Speed Spindles
  • REIDEN DDT (Double Drive High Torque/Hi Speed Spindle)
  • Direct Drive Turning Table
  • Tool Changers
  • High Pressure Coolant Systems
  • Mist Collection Systems
  • Tool Probe
  • Part Probe
  • Automatic Pallet Changers (APC)
  • Pallet Pools and FMS Systems
