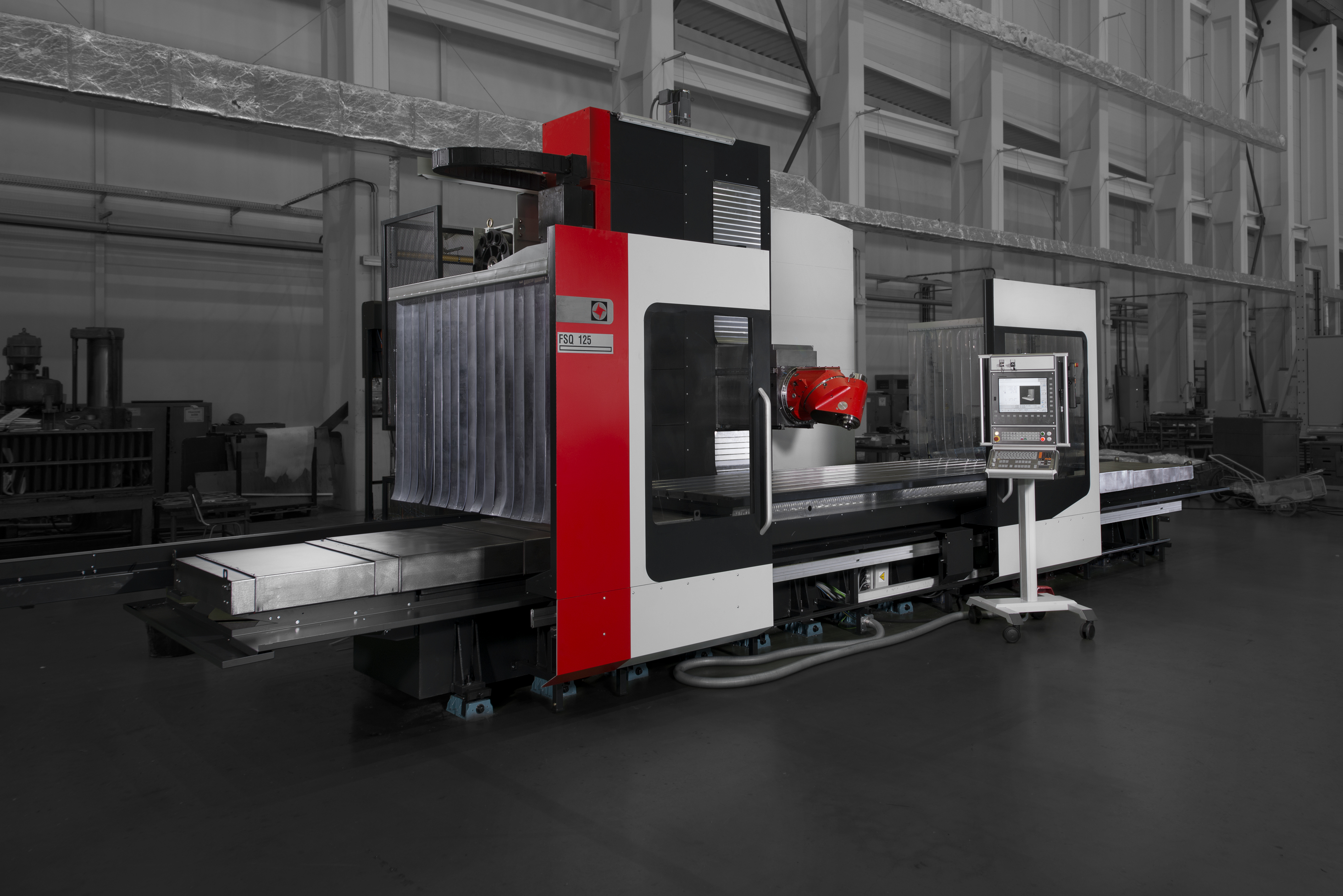

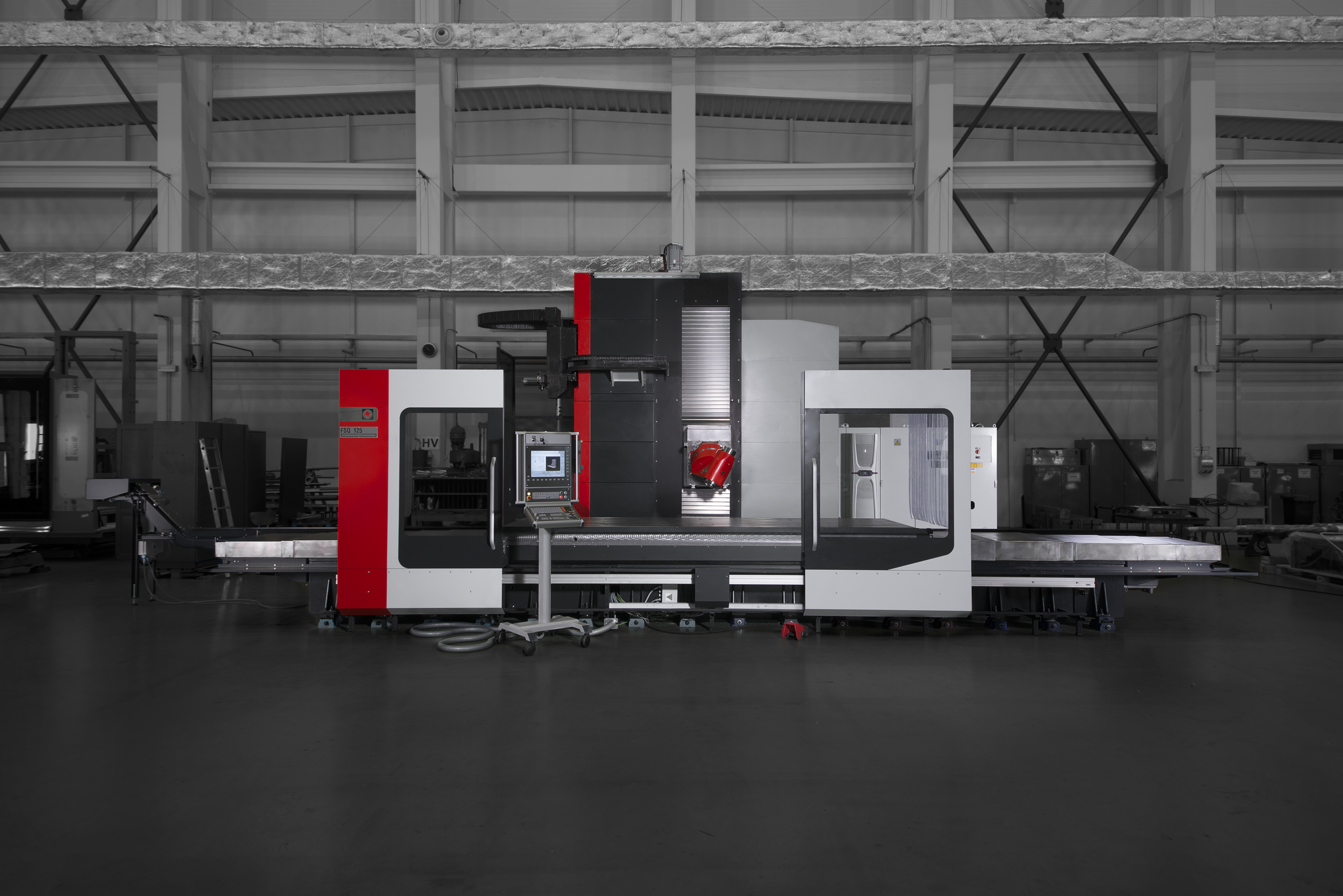

The TOS KURIM series of Bed Type machines utilize 100% linear guide way systems for superior heavy-duty cutting over the full volume of the work cube.

The FS bed type can be designed with a variety of attachment heads to solve the most demanding medium and large part production environment.

General Specifications

Working Range Axis Travel X 197" (Up to 5,000 mm)
Axis Travel Y 118" (Up to 3,000 mm)
Axis Travel Z Column Feed 78" (2,000 mm)
Axis Travel W RAM - Optional 78" (2,000 mm)
Head/RAM Size 19" x 19" (500 x 500 mm)
Head/RAM Change with C axis Optional
Feed Rate/Rapid Rates Linear Axis 1181 IPM (30 M/min)
Spindle Power Spindle Speed 4,000 to 6,000 RPM
Spindle Power 50 HP (37 kW)
Spindle Torque 1,476 ft-lbs. (2,000 NM)
Spindle Connection CAT 50, HSK 100
Automatic Tool Changer Capacity 40 - 60 tools

Available Options:

  • Automatic Changeable Heads
  • Tool Changers
  • Head Storage
  • Coolant Systems
  • Tool Probe
  • Part Probe
