FU FLOOR TYPE HORIZONTAL BORING MILL

The TOS KURIM FU series of Floor-Type machines utilize either a 100% linear guide guide way systems for superior heavy-duty cutting over the full volume of the work cube.

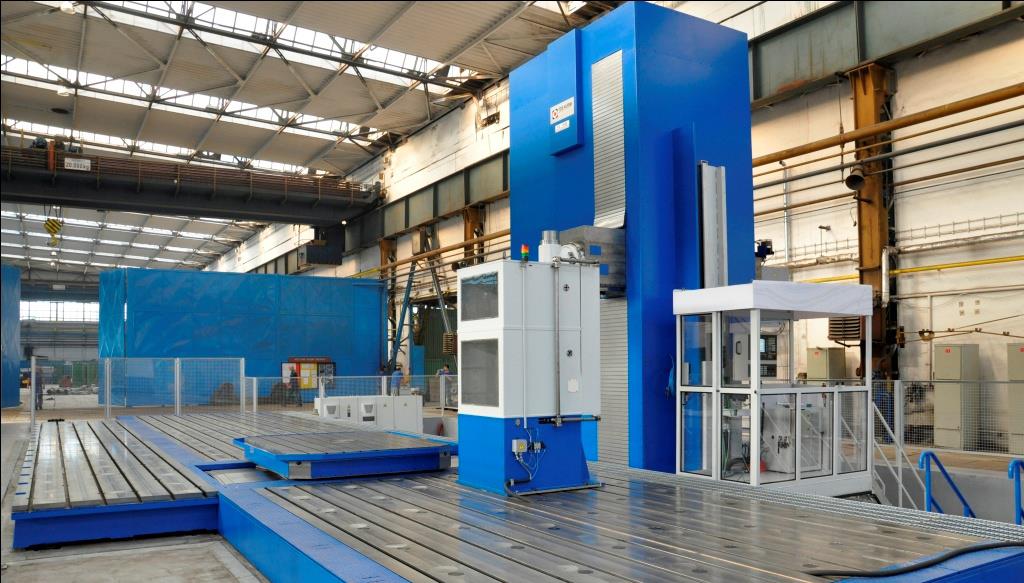

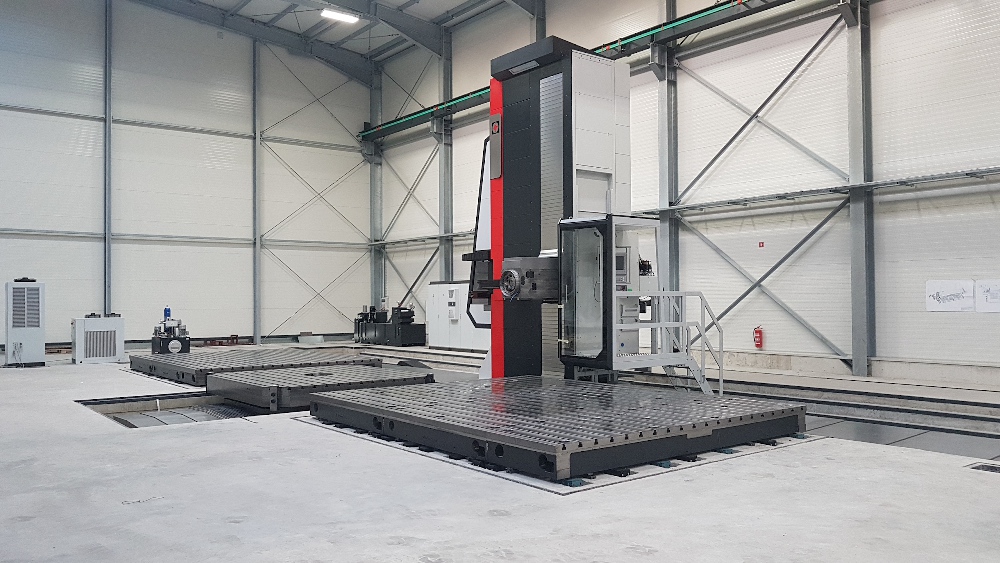

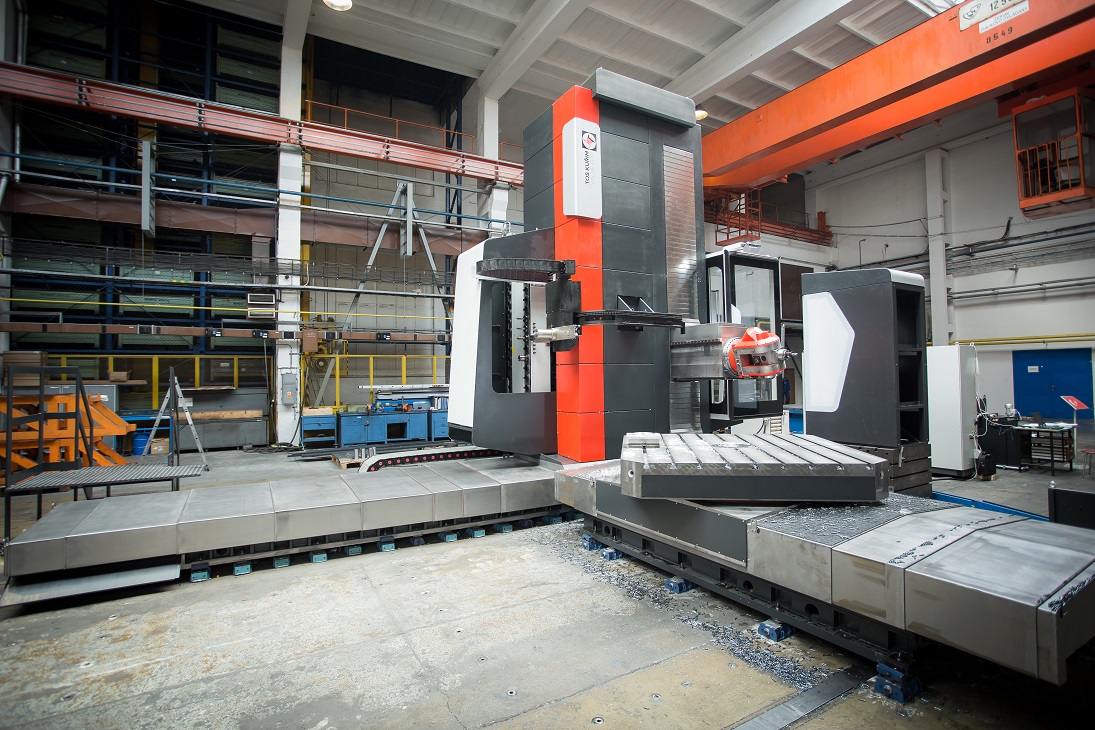

The FU floor-type can be designed with a variety of attachment heads, floor plates and rotary tables to solve the most demanding large part production environment.

General Specifications

Working Range Axis Travel X Unlimited
Axis Travel Y 55" to 314" (1,400 to 8,000 mm)
Axis Travel Z Ram 49" to 78" (1,250 to 2,000 mm)
Ram Size 20" x 20" (500 x 500 mm)
Head/RAM Change with C axis Optional
Feed Rate/Rapid Rates Linear Axis 590 IPM to 944 IPM (15 to 24 M/min)
Spindle Power Spindle Speed 4,000 or 6,000 RPM
Spindle Power 50 HP (37 kW), Options to 80 HP (60 kW)
Spindle Torque 1,476 ft-lbs. (2,000 Nm)
Spindle Connection CAT 50, HSK 100
Automatic Tool Changer Capacity 40 or 60 tools
Rotary Table Options Table Size 59" x 59" (1,500 x 1,500 mm) to 98 x 98" (2,500 x 2,500 mm)
Capacity 33,000 lbs to 55,000 lbs (15,000 kg to 25,000 kg)
Auxiliary SlideTravels 49" to 88" (1,250 to 2,250 mm)

Available Options:

  • Turning Table
  • Automatic Changeable Heads
  • Tool Changers
  • Head Storage
  • Coolant Systems
  • Tool Probe
  • Part Probe
