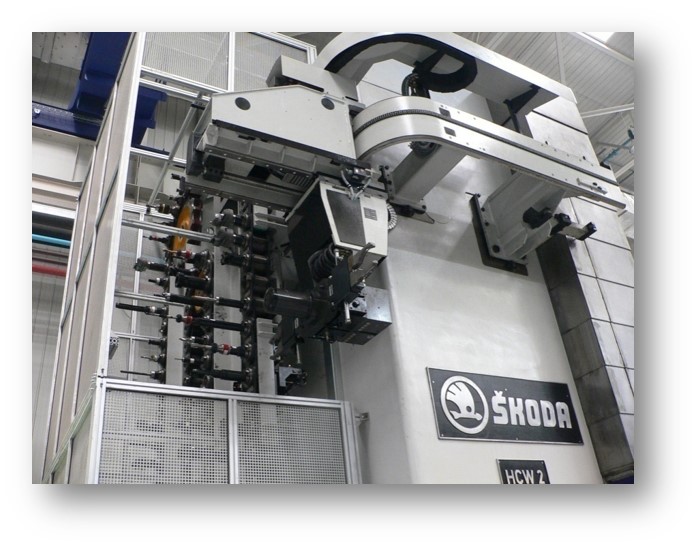

AUTOMATIC TOOL CHANGER for SKODA Horizontal Boring Mills

The SKODA automatic tool changer can store up to 160 tools while riding along with the column. Riding with the column reduces tool change time by not having to go to the end of the X axis to pick up a tool. The optional robotic tool change system can accommodate tool storage needs over 160 tools.

The SKODA automatic tool changer can change tools into the ram and bar spindle and various heads in both the horizontal or vertical attitude.

General Specifications

Chain Style Magazine Tool Capacity 40 to 160 Tools
On Floor or On Column Bed Tool Weight Capacity 55 lbs. (25 kg) or 110 lbs. (50 kg)
Tool Change Position Horizontal or Vertical
Robotic Style Magazine Tool Capacity Unlimited (per request)
Tool Weight Capacity 55 lbs. (25 kg) or 110 lbs. (50 kg)
Tool Change Position Horizontal or Vertical
Slider

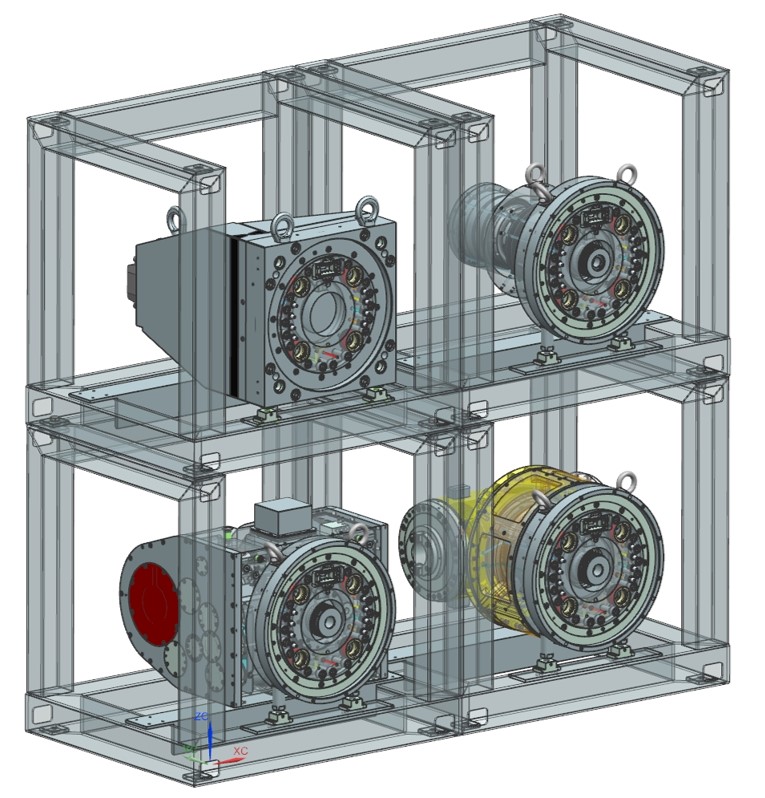

ACCESSORIES HEAD STORAGE

The SKODA automatic Head Storage Units are built in the SKODA factory to provide a direct interface and protection for head storage on all SKODA Horizontal Boring Mills

The Head Storage Units can store up to 8 heads dependent upon the Y axis travel of the machine. The Head Storage Units can be placed on the floor plate or on the floor and within the X axis stroke of the machine.

Automatic drop off and pick up is incorporated into the machine CNC operation. Doors and / or steel roller shades are provided to protect the parked heads from machine chips and coolant during automatic process.

General Specifications

HEAD LOAD/UNLOAD STATION Head Capacity 3 to 6 Heads Each
Fixed Location In Front of X axis
Head Protection Sliding Doors
HEAD LOAD/UNLOAD STATION Head Capacity 3 to 20 Heads Each
With position slide Location Along X or Z axis
Head Protection Sliding Doors
previous arrow
next arrow
Slider

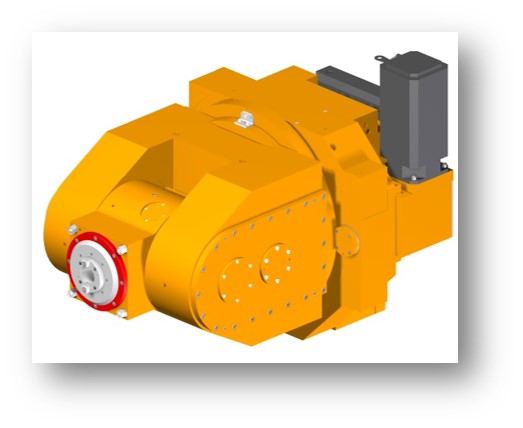

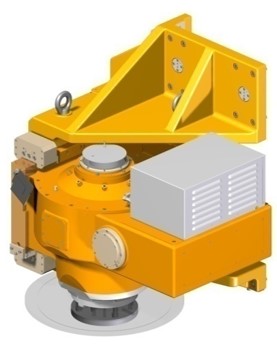

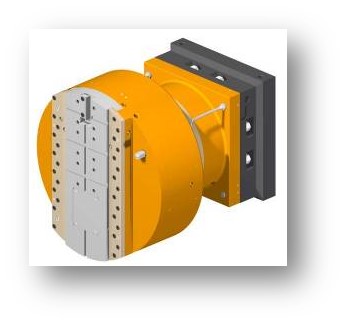

HEADS for SKODA Horizontal Boring Mills

The SKODA automatic attachment heads are manufactured in the SKODA factory and engineered to strict tolerances.

Each SKODA head is hand scraped and matched perfectly to the RAM Face of the machine it will be married to.

Automatic latching to the RAM face to provide a rigid machining platform is standard. All services including coolant, recirculating oil, electrical and air through the RAM to the head.

The automatic tool changer can change the tooling connection (CAT, HSK, and CAPTO) directly into each head in both the vertical and horizontal attitude.

General Specifications

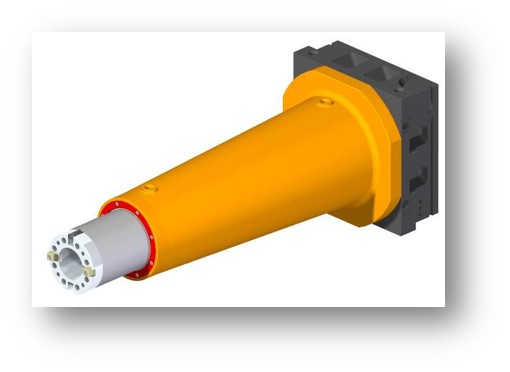

IFVW 40 Type Straight Head
Spindle Torque 5,165 ft. lbs. (7,000 NM)
Spindle Power 107 HP (80 kW)
IFVW 101, 102,103,104 Type Right Angle Head
Spindle Torque 738 ft. lbs. (1,000 NM) to 2,952 ft. lbs. (4,000 NM)
Spindle Power 34 HP (25 kW) up to 114 HP (85 kW)
Angular Resolution 1 degree or 2.5 degree

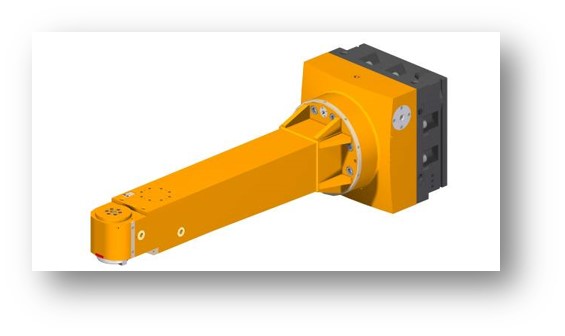

IFVW 111,112,113 Type Small Right Angle Head
Spindle Torque 443 ft. lbs. (600 NM)
Spindle Power 34 HP (25 kW)

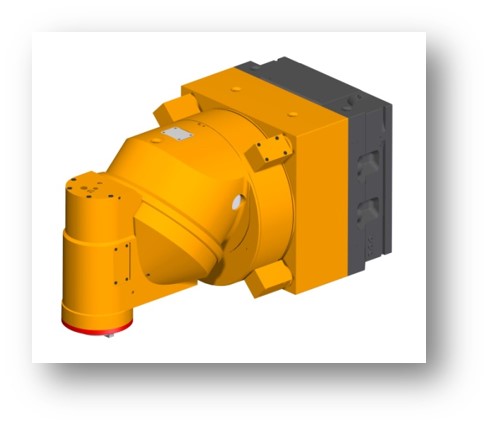

IFVW 203 Type Universal Indexing Head - 45 degree
Spindle Torque 1,107 ft. lbs. (1,500 NM)
Spindle Power 40 HP (30 kW)
Rotation - C 1.0 or 2.5 degree Hirth Coupling
Rotation - A 1.0 or 2.5 degree Hirth Coupling

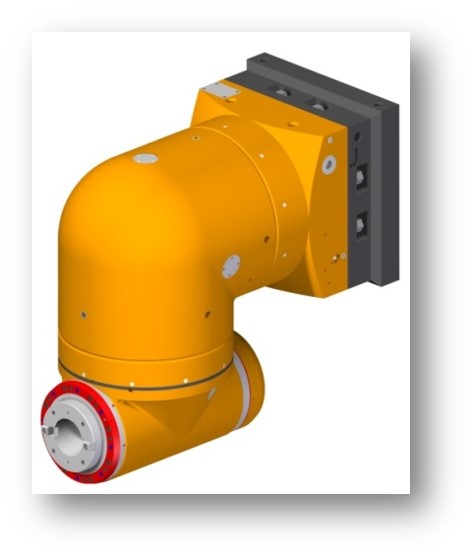

IFVW 206,207,208 Type Universal Indexing Head - 90 degree
Spindle Speed 738 ft. lbs. (1,000 NM) to 2,583 ft. lbs. (3,500 NM)
Spindle Power 34 HP (25 kW) up to 98 HP (73 kW)
Rotation - C 1.0 or 2.5 degree Hirth Coupling
Rotation - A 1.0 or 2.5 degree Hirth Coupling
UFK 600, 1000, 2000, 2400 Type Full 5 Axis with Auto Tool Change
Spindle Torque 443 ft. lbs. (600 NM) to 1,771 ft. lbs. (2,400 NM)
Spindle Power 50 HP (25 kW) up to 95 HP (50 kW)
Rotation - C 360 degree Servo
Rotation - A '+90 to -120 degree Servo
previous arrow
next arrow
Slider

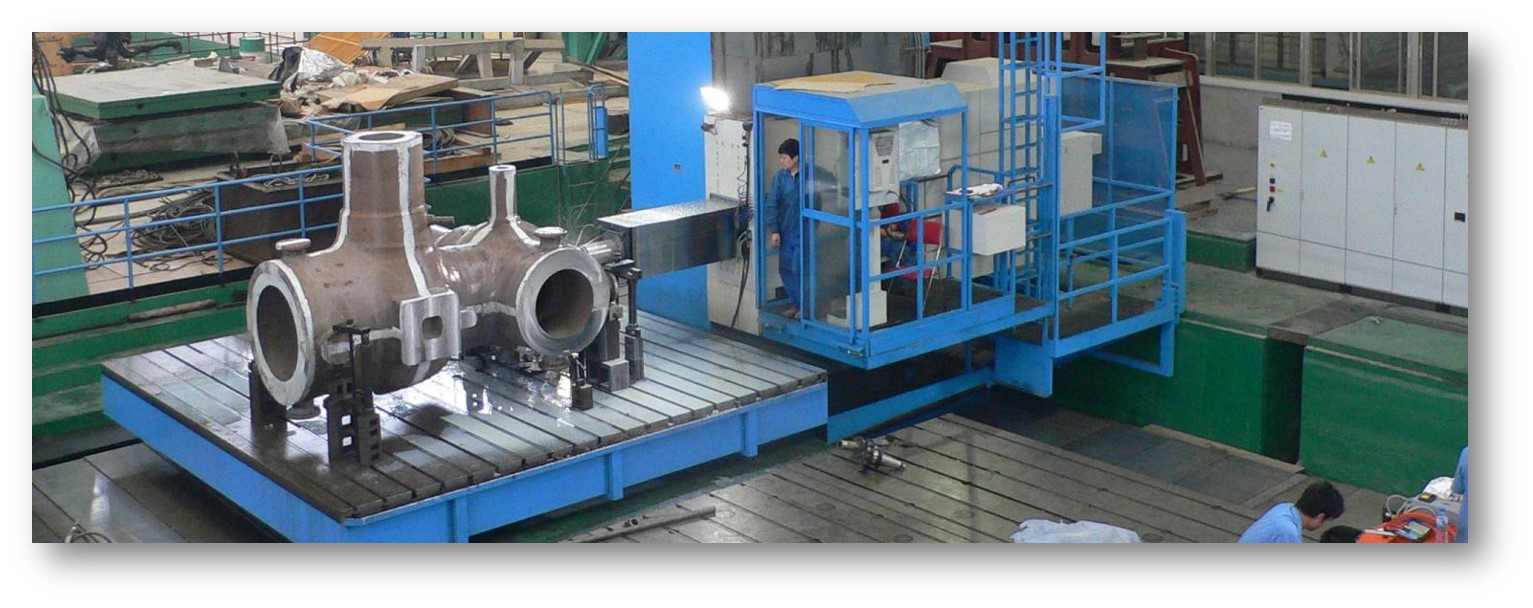

ROTARY TABLES for SKODA Horizontal Boring Mills

The SKODA series of Rotary Tables and Turning Tables are manufactured by SKODA for seamless integration to each machine for each specific application.

The SKODA Rotary Tables are equipped with a Hydrostatic bearing to meet demanding loads and machining requirements while maintaining consistent, precise accuracy and long, productive life.

The SKODA Rotary Tables are provided with a Hydrostatic bearing auxiliary axis to increase the part swing and clearance.

A Turning Table is also available so large parts are not required to be moved to another machine to just turn some features.

General Specifications

TDV 50 to 400 Ton Type Milling Capable - Hydrostatic Bearing
Load Capacity 66,000 to 880,000 lbs (30,000 to 400,000 kg)
Table Size - Square 59 x 59" (1,500 x 1,500 mm) to 255 x 255" (6,500 x 6,500 mm)
Table Speed  4 RPM
Axis Travel Auxiliary Slide 78 to 275" (2,000 to 7,000 mm)
TDV 40 to 160 Ton TILT Type Milling Capable - Hydrostatic Bearing
Load Capacity 88,000 to 352,000 lbs (40,000 to 160,000 kg)
Table Size - Square 78 x 78" (2,000 x 2,000 mm) to 196 x 196" (5,000 x 5,000 mm)
Table Speed 4 RPM
TDV 40 to 250 Ton TURNING Type Heavy Duty Turning Capable - Hydrostatic Bearing
Load Capacity 88,000 to 550,000 lbs (40,000 to 250,000 kg)
Table Size - Round 78 to 255" (2,000 to 6,500 mm)
Axis Travel Auxiliary Slide 157 to 275" (4,000 to 7,000 mm)
FLOORPLATES Load Capacity 33,000 lbs (15,000 kg) per square meter (39.4")
Design for X travel Size 39.4 x 39.4" ( 1,000 mm x 1,000 mm)
Thickness 11.8" (300 mm)
Top Configuration T Slots
