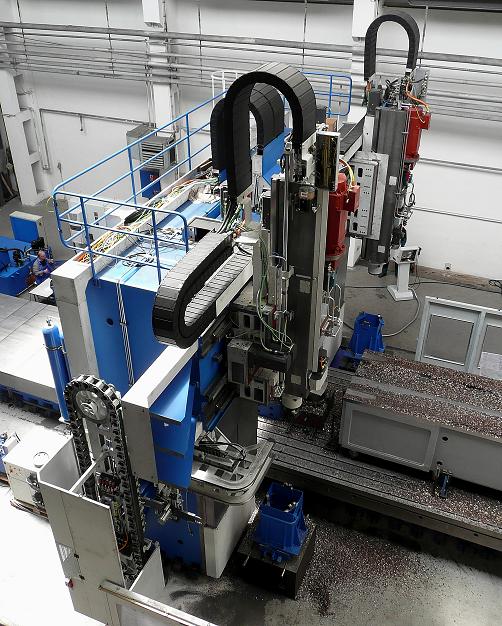

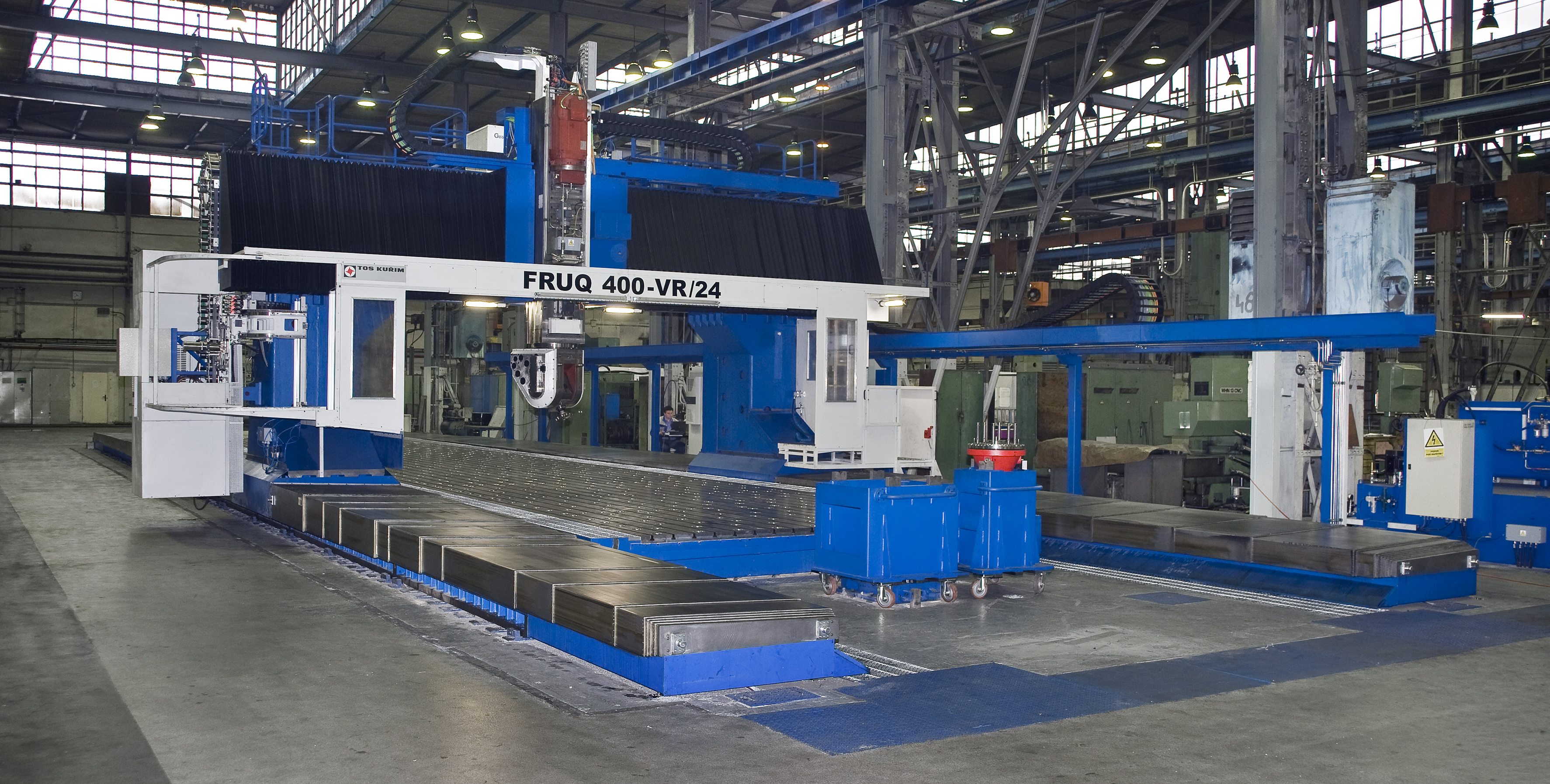

AUTOMATIC TOOL CHANGER for COLGAR Horizontal Boring Mills

The COLGAR International automatic tool changer can store up to 220 tools while riding along with the column. Riding with the column reduces tool change time by not having to go to the end of the X axis to pick up a tool.

The COLGAR automatic tool changer can change tools into the ram and bar spindle and various heads in both the horizontal or vertical attitude.

General Specifications

Chain Style Magazine Tool Capacity 40 to 140 Tools

On Floor or On Column Bed Tool Weight Capacity 66 lbs. or 110 lbs. (30 kg or 50 kg)
  Tool Change Position Horizontal or Vertical

Matrix Style Magazine Tool Capacity 80 to 220 Tools

On Floor or On Column Bed Tool Weight Capacity 66 lbs. or 110 lbs. (30 kg or 50 kg)
  Tool Change Position Horizontal or Vertical



Tool Storage with 100 Tools
Tool Storage with 100 Tools
previous arrow
next arrow
Full screenExit full screen
ArrowArrow
Slider

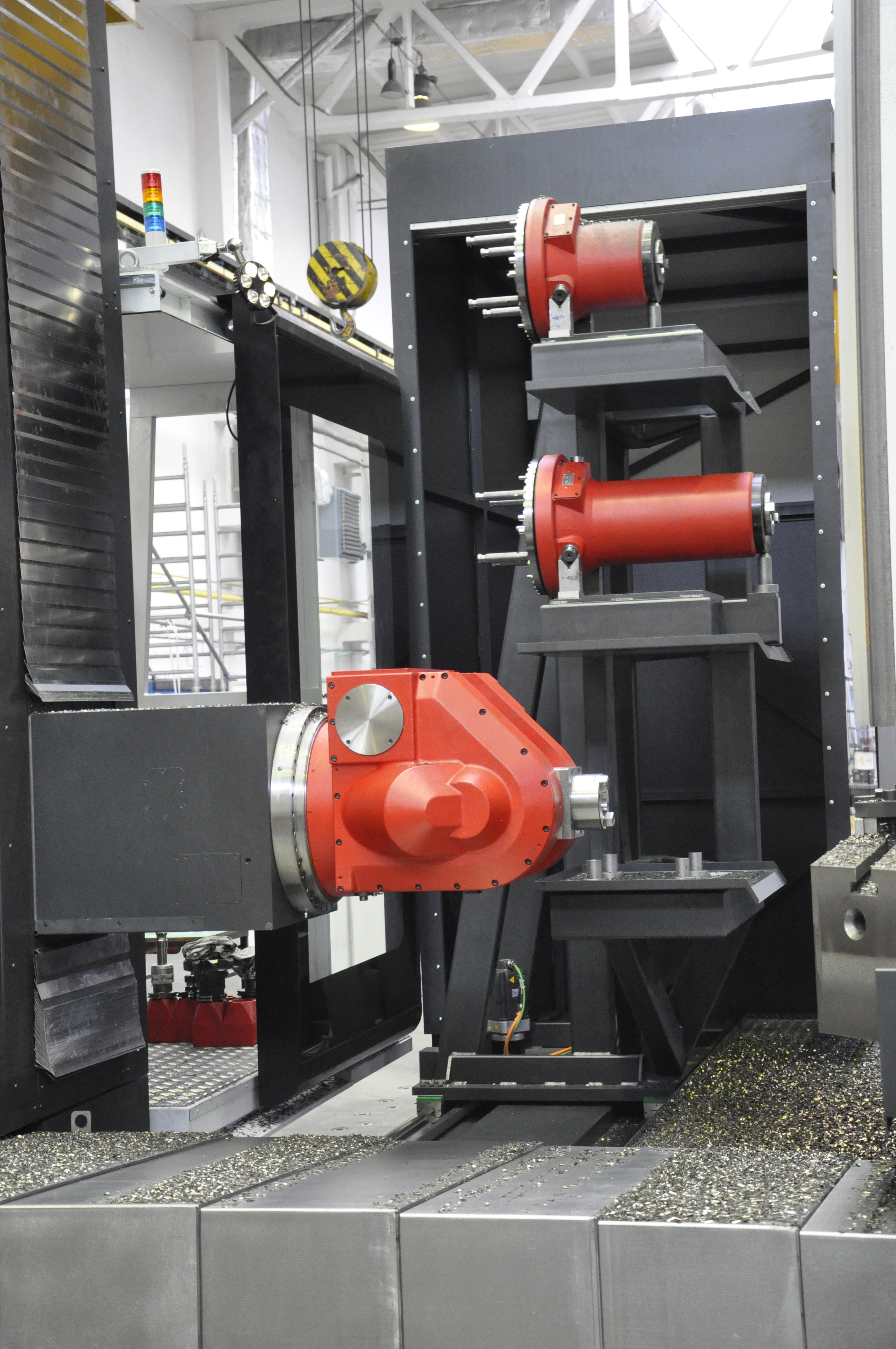

HEAD STORAGE for COLGAR Horizontal Boring Mills

The COLGAR International automatic Head Storage Units are built in the COLGAR factory to provide a direct interface and protection for head storage on all COLGAR Horizontal Boring Mills

The Head Storage Units can store up to 6 heads dependent upon the Y axis travel of the machine. The Head Storage Units can be placed on the floor plate or on the floor and within the X axis stroke of the machine.

Automatic drop off and pick up is incorporated into the machine CNC operation. Door and / or steel roller shades are provided to protect the parked heads from machine chips and coolant during automatic processes.

General Specifications

HEAD LOAD/UNLOAD STATION Head Capacity 2 to 6 Heads Each

Fixed Location In Front of X axis
  Head Protection Roll up or Sliding Doors

HEAD LOAD/UNLOAD STATION Head Capacity 2 to 6 Heads Each

With position slide Location Along X or Z axis
  Head Protection Roll up or Sliding Doors



Tool Storage with 100 Tools
Tool Storage with 100 Tools
Tool Storage with 100 Tools
Tool Storage with 100 Tools
Tool Storage with 100 Tools
Tool Storage with 100 Tools
Tool Storage with 100 Tools
Tool Storage with 100 Tools
Tool Storage with 100 Tools
Tool Storage with 100 Tools
Tool Storage with 100 Tools
previous arrow
next arrow
Full screenExit full screen
ArrowArrow
Slider

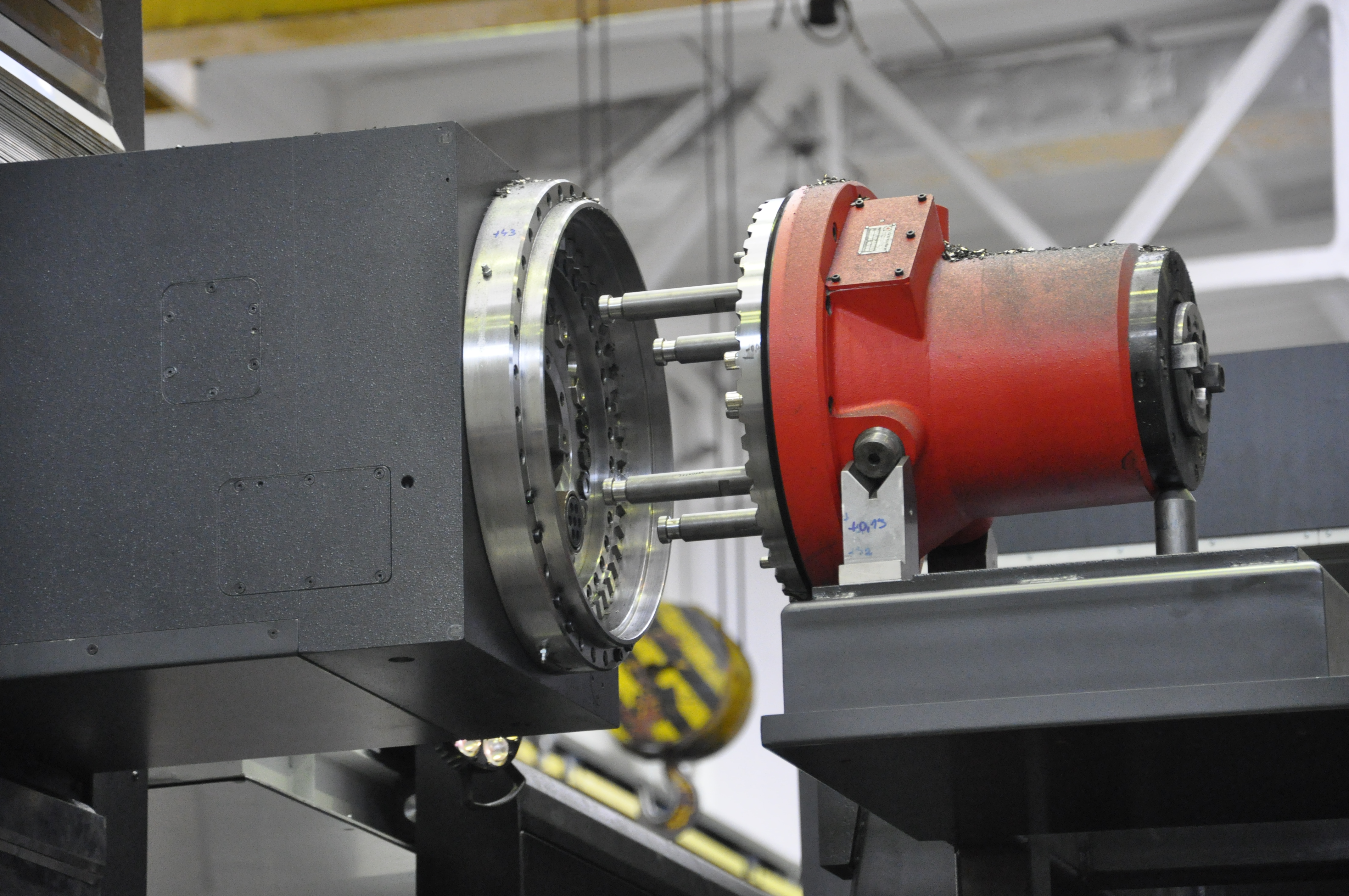

HEADS for COLGAR Horizontal Boring Mills

The COLGAR International automatic attachment heads are manufactured in the COLGAR factory and engineered to strict tolerances.

Each COLGAR head is hand scraped and matched perfectly to the face or the RAM of the machine it will be married to.

Automatic latching to the face of the RAM to provide a rigid machining platform is standard. All services including coolant, recirculating oil, electrical and air through the RAM to the head.

The automatic tool changer can change the tooling connection (CAT, HSK, and CAPTO) directly into each head in both the vertical and horizontal attitude.

General Specifications

TSQ 100L (1.0) or (2.5) Type Right Angle Extended with Auto Tool Change
  Spindle Speed 2,000 to 3,000 RPM
  Spindle Power 40 HP
  Rotation - C 1.0 or 2.5 degree Hirth Coupling

TSQ 300 (1.0) or (2.5) Type Right Angle Short with Auto Tool Change
  Spindle Speed 2,000 to 3,000 RPM
  Spindle Power 55 HP
  Rotation - C 1.0 or 2.5 degree Hirth Coupling

MAPA 200 Type Horizontal Extended with Auto Tool Change
  Spindle Speed 2,000 to 3,000 RPM
  Spindle Power 26 HP

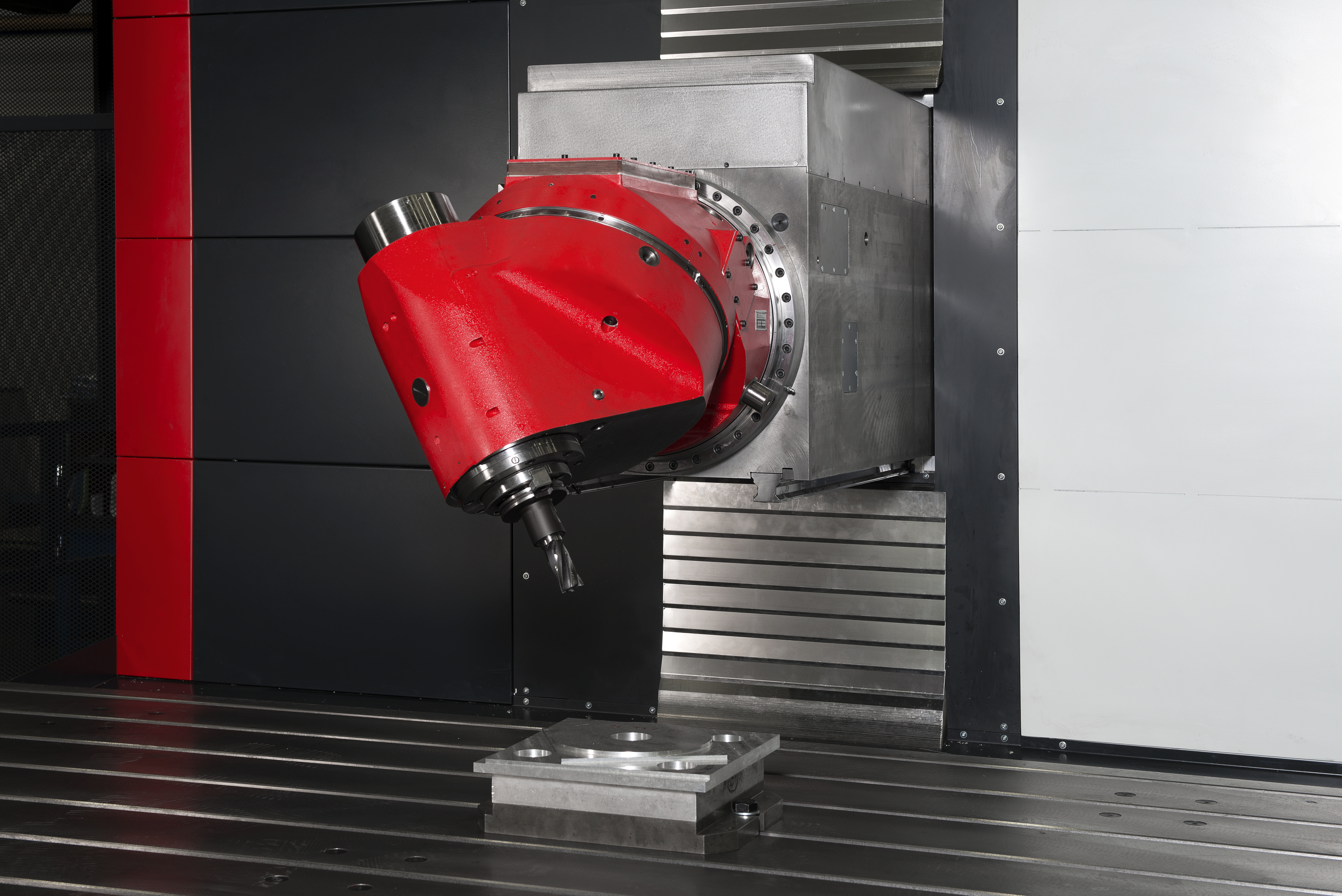

TABR 80 Type Automatic Universal Head with Auto Tool Change
  Spindle Speed 2,000 to 3,000 RPM
  Spindle Power 27 HP
  Rotation - C 1.0 degree Hirth Coupling
  Rotation - A +105 to -105 degree servo

TA 120 (1.0) (2.5) Type Automatic Milling Head with Auto Tool Change
  Spindle Speed 2,000 to 3,000 RPM
  Spindle Power 55 HP
  Rotation - C 1.0 or 2.5 degree Hirth Coupling
  Rotation - A 1.0 or 2.5 degree Hirth Coupling

T2RA 80 5 Axis Type Full 5 Axis with Auto Tool Change
  Spindle Speed 4,500 to 8,000 RPM
  Spindle Power 40 HP
  Rotation - C 360 degree Servo
  Rotation - A +95 to -105 degree Servo



ROTARY TABLES for COLGAR
previous arrow
next arrow
Full screenExit full screen
ArrowArrow
Slider

ROTARY TABLES for COLGAR Horizontal Boring Mills

The The COLGAR International series of Rotary Tables are manufactured by COLGAR with seamless integration to each machine for each specific application.

The COLGAR Rotary Tables are 100% Hydrostatic to meet demanding loads and machining requirements while maintaining consistent, precise accuracy and long life.

The COLGAR Rotary Table incorporates four (4) positive mechanical locks at the 90 degree positions to supplement heavy machining on very large off center parts.

General Specifications

TiRT 120 Load Capacity 33,000 lbs (15,000 kg)
  Table Size - Square 63" to 78" (1,600 mm to 2,000 mm)
  Axis Travel Auxiliary Slide 59" to 196" (1,500 mm to 5,000 mm)

TRT 150 Load Capacity 66,000 lbs (30,000 kg)
  Table Size - Square 78" to 98" (2,000 mm to 2,500 mm)
  Axis Travel Auxiliary Slide 59" to 196" (1,500 mm to 5,000 mm)

TRT 175 Load Capacity 99,000 lbs (45,000 kg)
  Table Size - Square 78" to 118" (2,000 mm to 3,000 mm)
  Axis Travel Auxiliary Slide 59" to 196" (1,500 mm to 5,000 mm)

TRT 200 Load Capacity 132,000 lbs (60,000 kg)
  Table Size - Square 98" to 138" (2,500 mm to 3,500 mm)
  Axis Travel Auxiliary Slide 59" to 196" (1,500 mm to 5,000 mm)

TRT 240 Load Capacity 220,000 lbs (100,000 kg)
  Table Size - Square 98" to 157" (2,500 mm to 4,000 mm)
  Axis Travel Auxiliary Slide 78" to 196" ( 2,000 mm to 5,000 mm)

TRT 280 Load Capacity 265,000 lbs (120,000 kg)
  Table Size - Square 118" to 196" (3,000 mm to 5,000 mm)
  Axis Travel Auxiliary Slide 78" to 196" (2,000 mm to 5,000 mm)

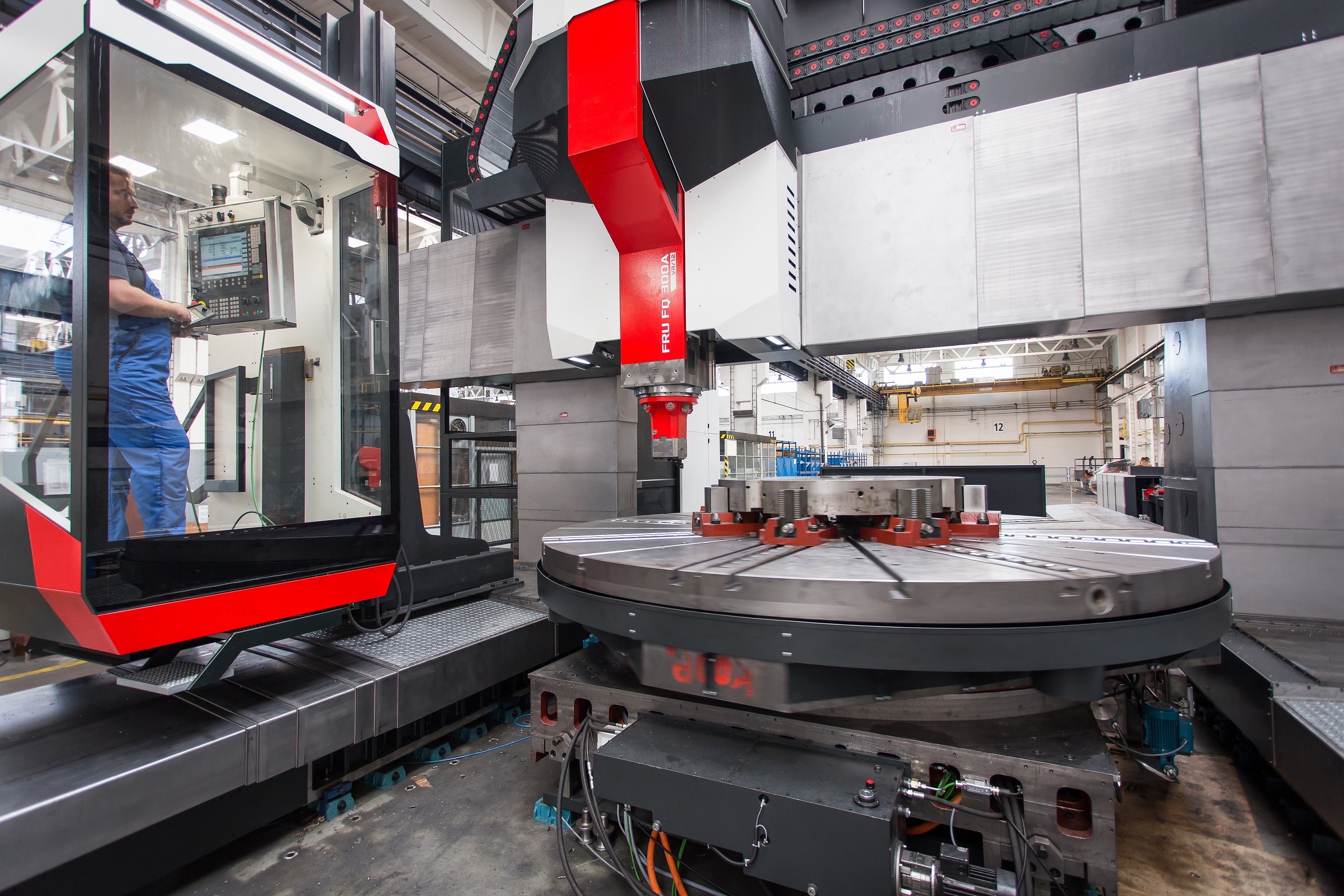

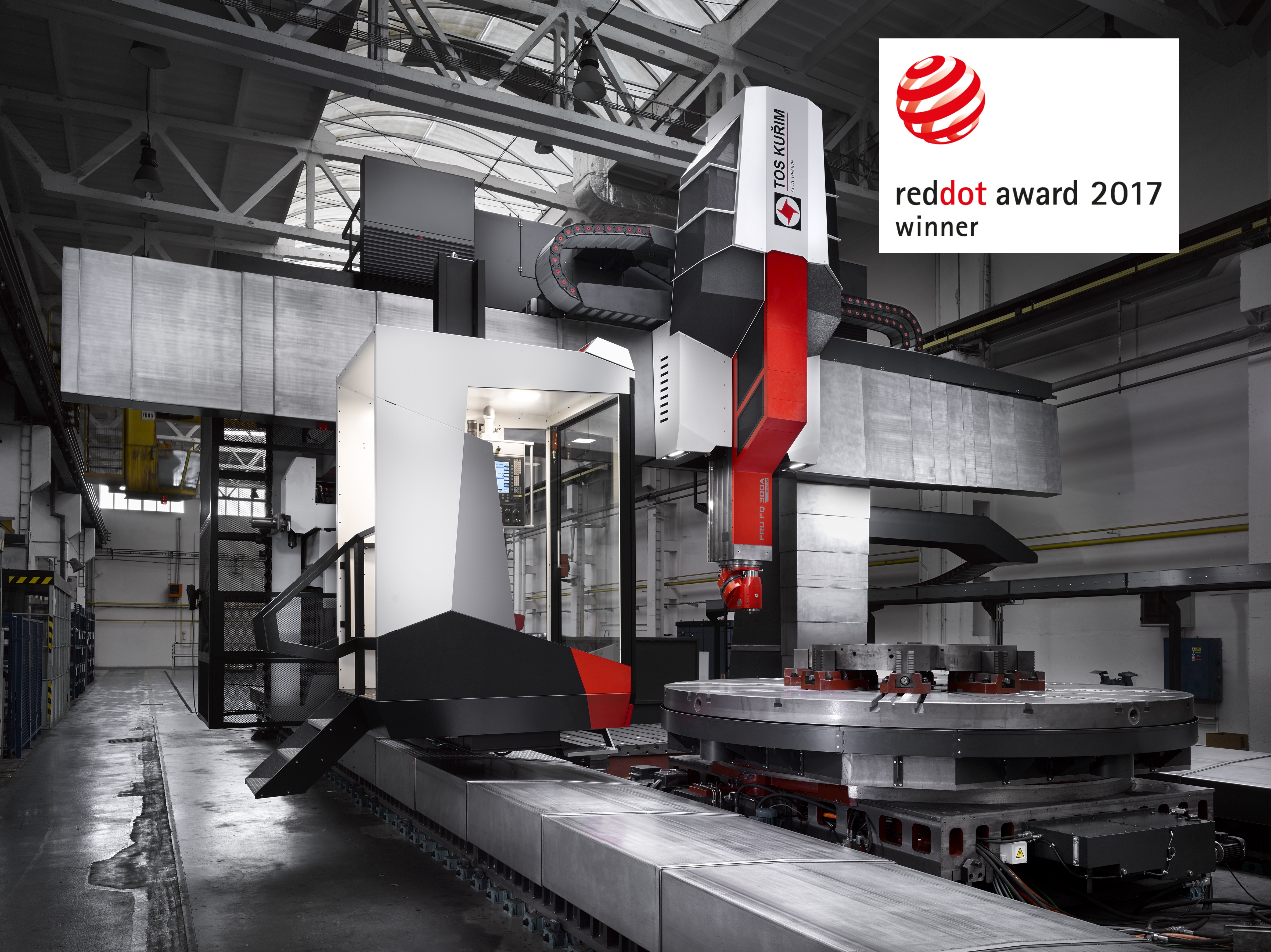

L355 Turning Table Load Capacity 66,140 lbs (30,000 kg)
  Table Size - Round 118" (3,000 mm)
  Table Speed 1.6 to 220 RPM
  Table Power 241 HP (180 kW)

FLOORPLATES Load Capacity 33,000 lbs (15,000 kg) per square meter (39.4")

Design for X travel Size 39.4" to 39.4" ( 1,000 mm to 1,000 mm)
  Thickness 11.8" (300 mm)
  Top Configuration T Slots
