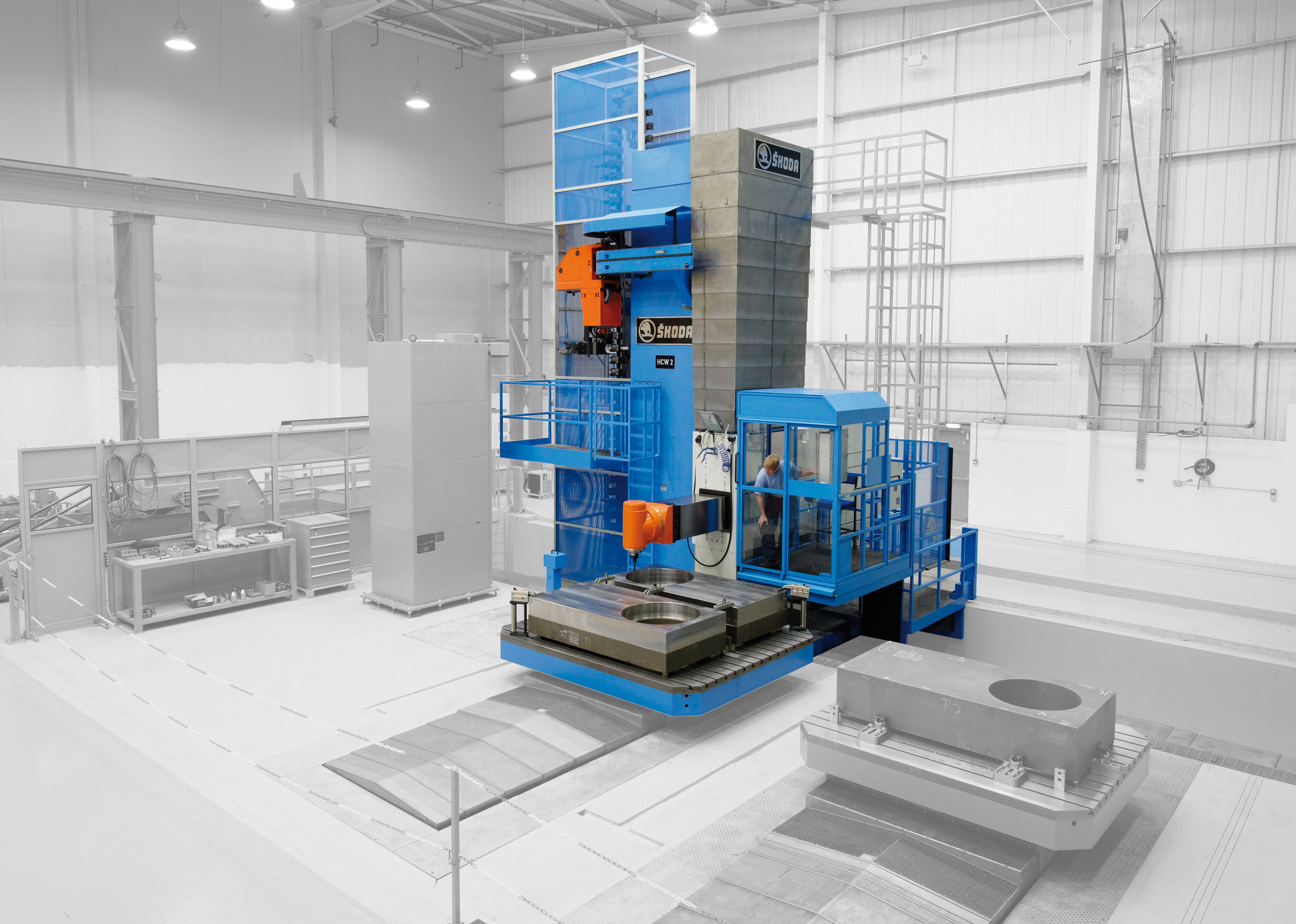

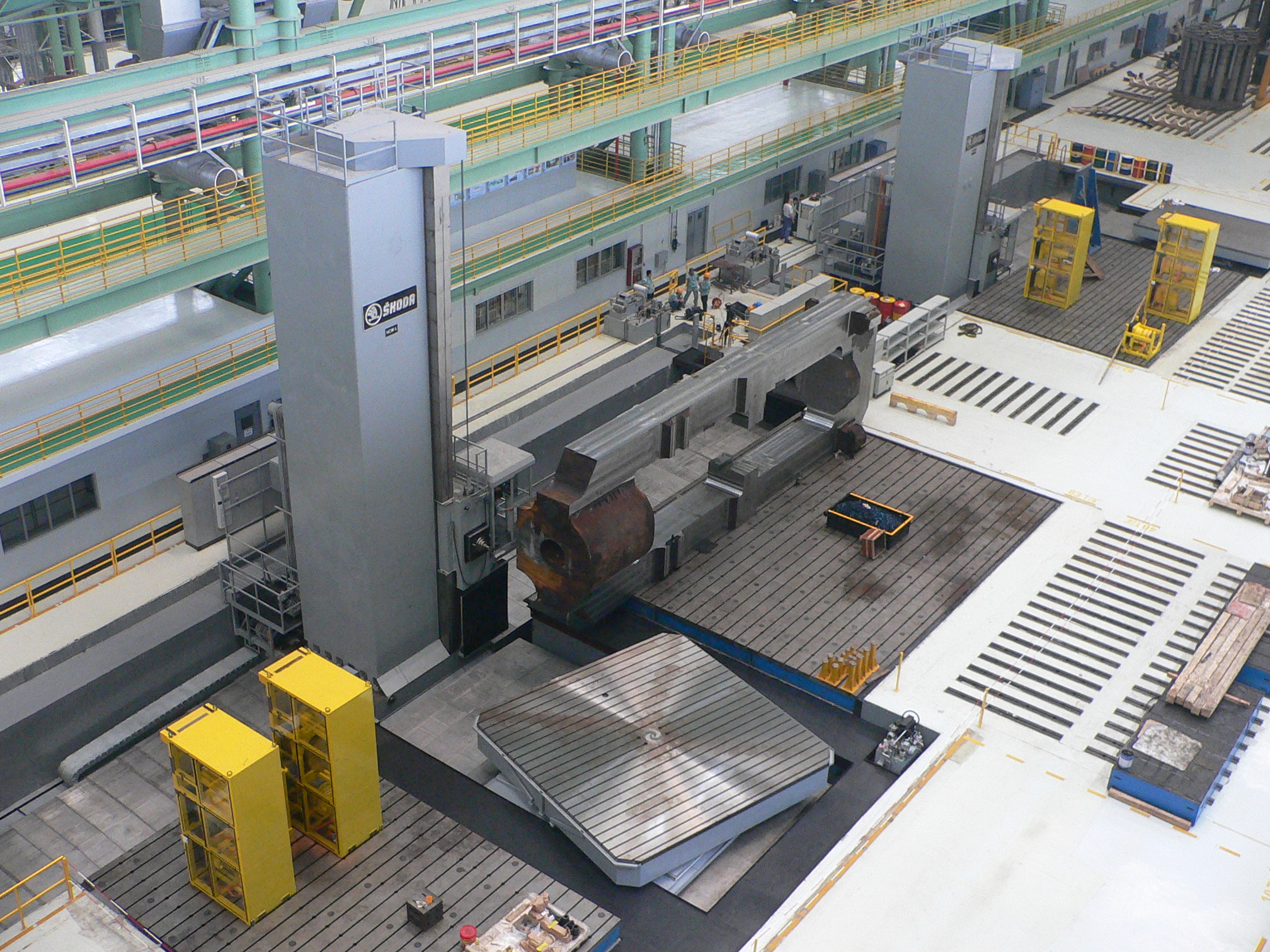

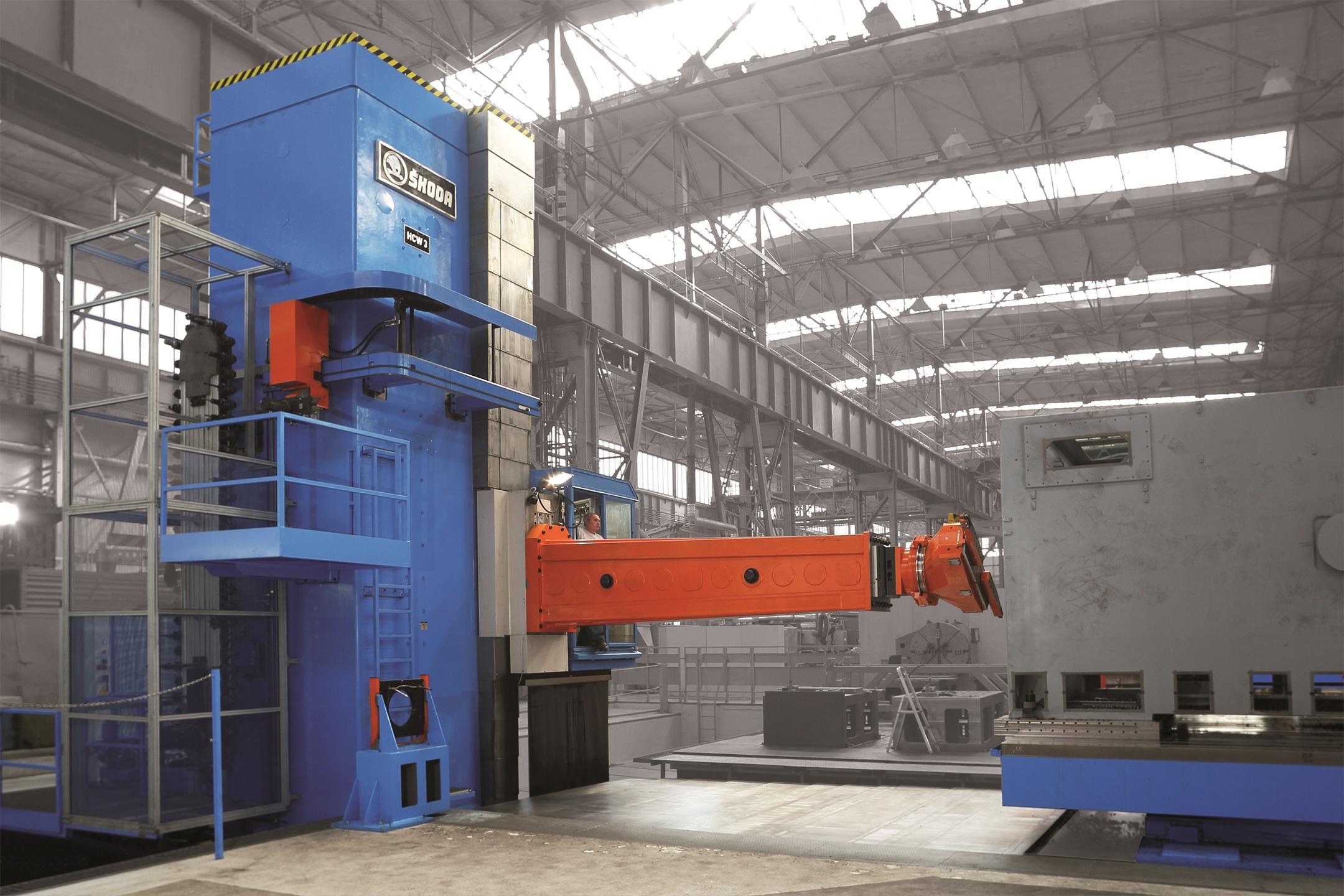

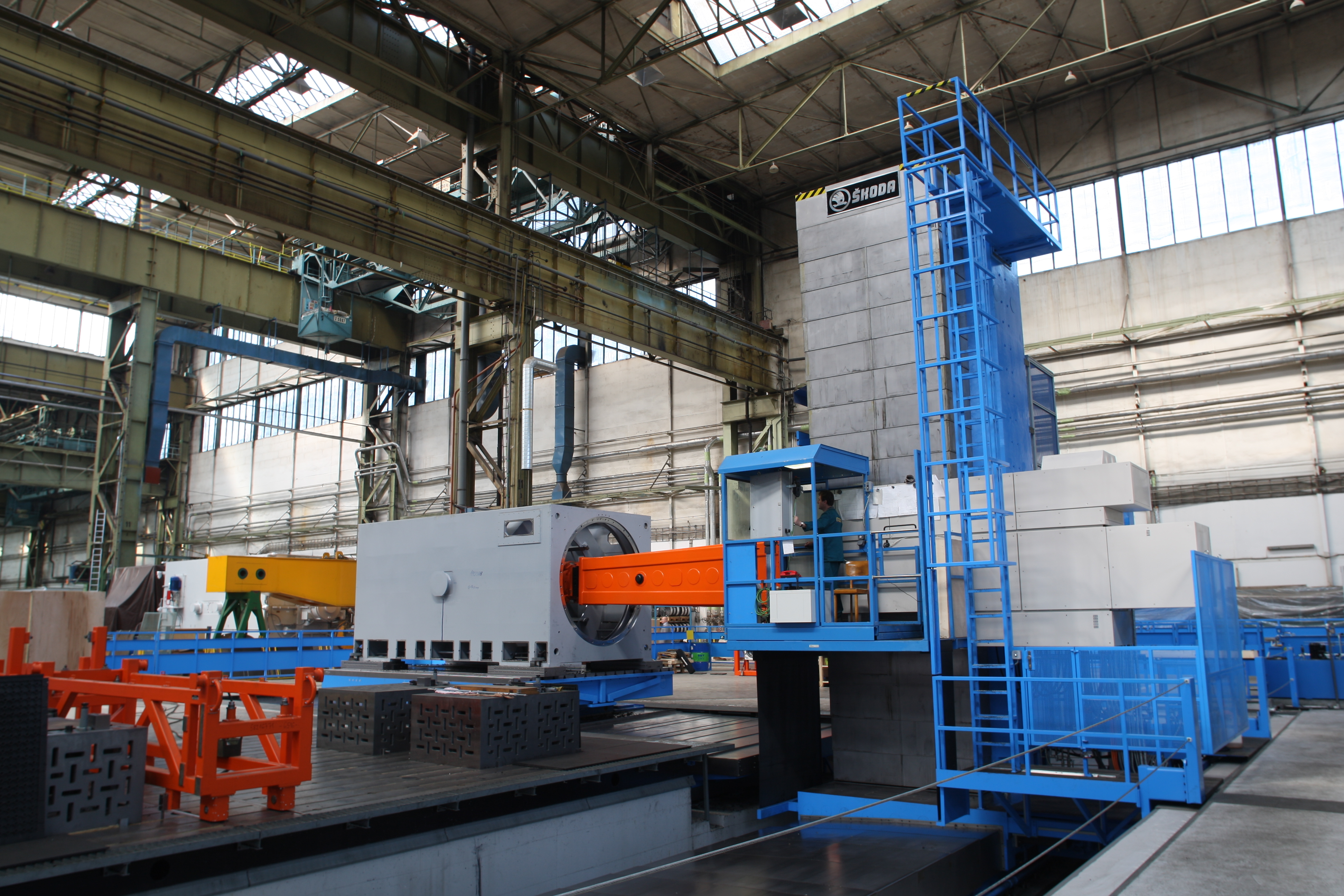

The SKODA HCW 2000-4000 series of Floor-Type machines utilize a 100% Hydrostatic way systems for superior heavy-duty cutting over the full volume of the work cube.

The SKODA HCW 2000-4000 floor-type can be designed with a variety of attachment heads, floor plates and rotary tables to solve the most demanding large part production environment.

General Specifications

Working Range Axis Travel X Unlimited
Axis Travel Y 78 to 354" (2,000 to 9,000 mm)
Axis Travel Z Column Feed 69 to 98" (1,750 to 2,500 mm)
Axis Travel W RAM - Optional 49" (1250 mm) to 59" (1500 mm)
Head/RAM Size 17 x 17" (420 x 420 mm) to 24 x 24" (600 x 600 mm)
Spindle Bar Size 6" (150 mm) to 10" (260 mm)
Head/RAM Change with C axis Optional
Feed Rate/Rapid Rates Linear Axis 590 IPM to 787 IPM (15 to 20 M/min)
Spindle Power Spindle Speed 2,500 to 3,500 RPM
Spindle Power 85 HP (64 kW), Options to 161 HP (120 kW)
Spindle Torque 3,395 ft-lbs. (4,600 Nm) to 9,225 ft-lbs. (12,500 Nm)
Spindle Connection CAT 50, CAT 60, HSK 100, HSK 125
Automatic Tool Changer Capacity 40 to 160 tools

Available Options:

  • Turning Tables
  • Automatic Changeable Heads
  • Tool Changers
  • Head Storage
  • Coolant Systems
  • Tool Probe
  • Part Probe
