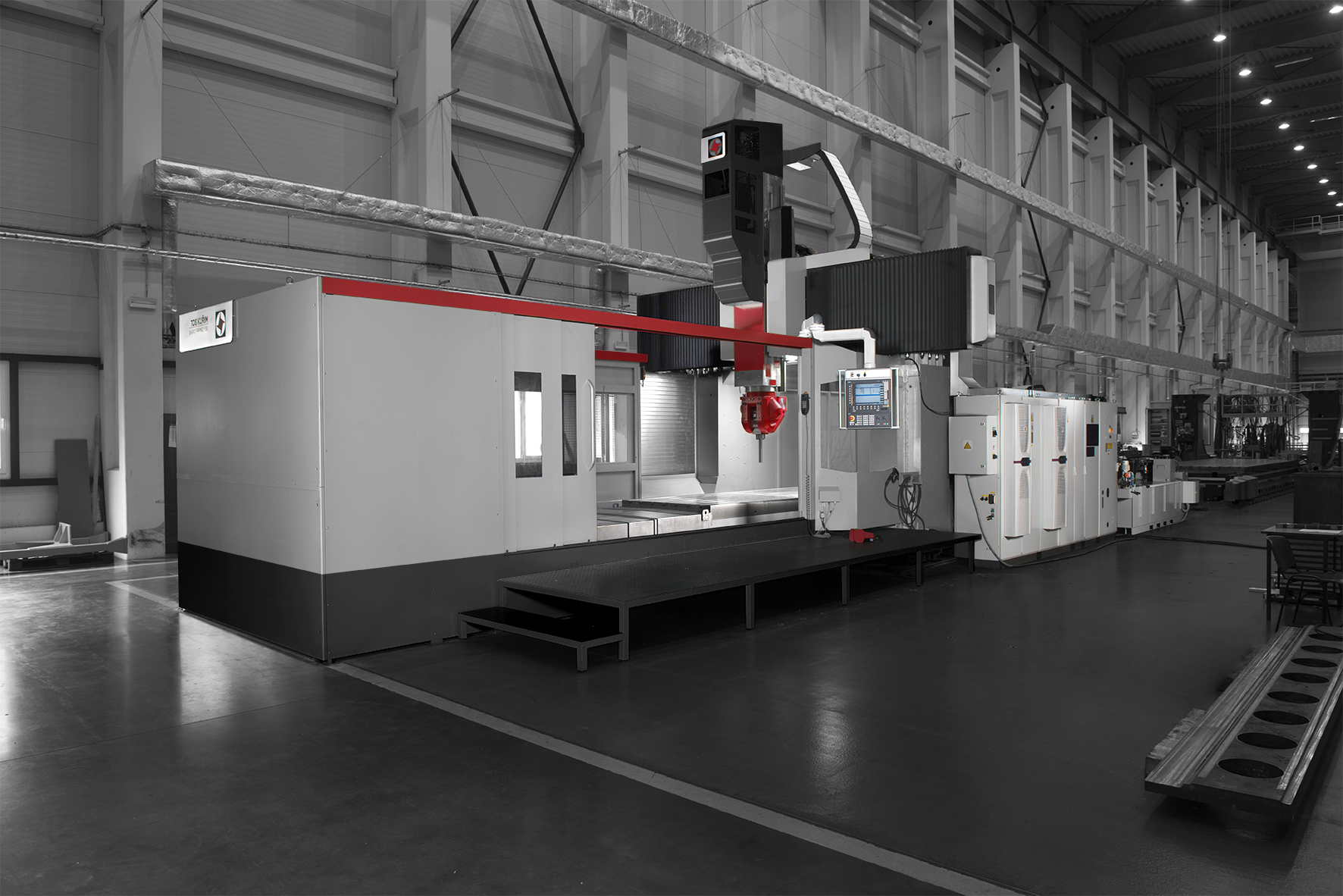

The TOS KURIM FRP series of Portal traveling table machine can utilize either a 100% Hydrostatic or 100% linear guide way system for superior heavy-duty cutting over the full volume of the work cube

The FRP portal traveling table can be designed with a variety of attachment heads, table width and length configurations, and either a fixed or adjustable rail for the most demanding large part production environment.

General Specifications

Working Range Axis Travel X 118" to 531" (3,000 to 13,500 mm)
Axis Travel Y 114" to 267" (2,900 to 6,800 mm)
Distance Between Columns 102" to 218" (2,600 to 5,550 mm)
Table Width 59" to 177" (1,500 to 4,500 mm))
Axis Travel Z Ram 49 to 78" (1,250 to 2,000 mm)
Ram Size 20 x 20" (500 x 500 mm)
Clearance Under Rail 80" (2,050 mm)
Feed Rate/Rapid Rates Linear Axis 787 IPM (20 M/min)
Spindle Power Spindle Speed 4,000 or 6,000 RPM
Spindle Power 50 HP (37 kW), Options to 95 HP (71 kW)
Spindle Torque 1,476 ft-lbs. (2,000 Nm)
Spindle Connection CAT 50, HSK 100

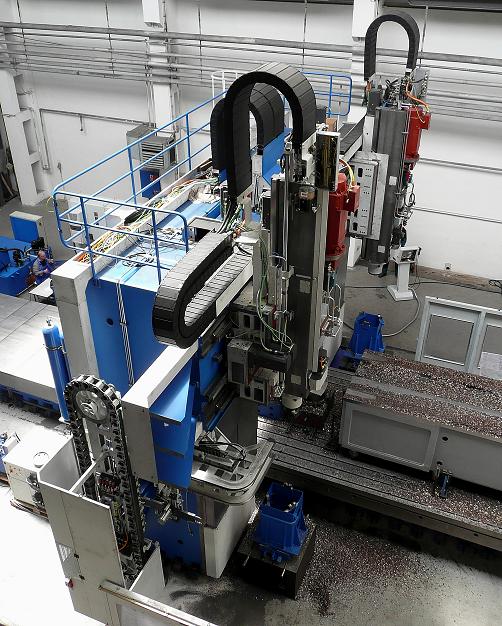

Automatic Tool Changer Capacity 40 or 60 tools

Available Options:

  • Automatic Changeable Heads
  • Adjustable Cross Rail
  • Tool Changers
  • Head Storage
  • Coolant Systems
  • Tool Probe
  • Part Probe
